WP813 Series

Catalog

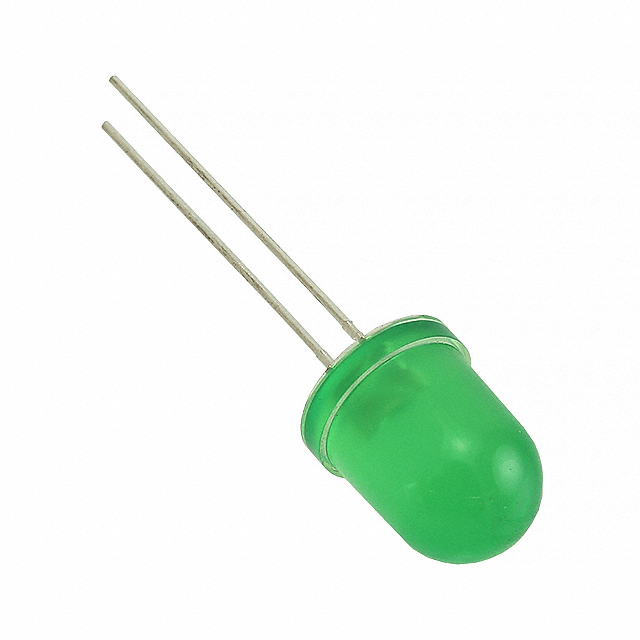

LED GREEN DIFFUSED 10MM T/H

Part	Wavelength - Peak	Lens Style	Wavelength - Dominant	Size / Dimension [diameter]	Package / Case	Lens Size [diameter]	Current - Test	Lens Color	Mounting Type	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Supplier Device Package	Height (Max) [Max] [z]	Millicandela Rating	Configuration	Lens Size	Lens Size
Kingbright WP813GD	565 nm	Round with Domed Top	568 nm	10 mm	Radial	10 mm Dia	20 mA	Green	Through Hole	Green	2.2 V	30 °	Diffused	10 mm	13.5 mm	60 mcd	Standard
Kingbright WP813SRC/E	660 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Colorless	Through Hole	Red	1.85 V	15 °	Clear	10 mm	13.5 mm	4500 mcd	Standard
Kingbright WP813SRD/E	655 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Red	Through Hole	Red	1.85 V	30 °	Diffused	10 mm	13.5 mm 14.75 mm	200 mcd 550 mcd	Independent Standard	10 mm	T-3 1/8
Kingbright WP813SRD/D	655 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Red	Through Hole	Red	1.85 V	30 °	Diffused	10 mm	13.5 mm	180 mcd	Standard
Kingbright WP813SRD/J4	660 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Red	Through Hole	Red	2.1 V	30 °	Diffused	10 mm	13.5 mm	600 mcd	Standard
Kingbright WP813SRC/J4	660 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Colorless	Through Hole	Red	2.1 V	15 °	Clear	10 mm	13.5 mm	3000 mcd	Standard
Kingbright WP813YD	590 nm	Round with Domed Top	588 nm	10 mm	Radial	10 mm Dia	20 mA	Yellow	Through Hole	Yellow	2.1 V	30 °	Diffused	10 mm	13.5 mm	50 mcd	Standard
Kingbright WP813SRC/F	660 nm	Round with Domed Top	640 nm	10 mm	Radial	10 mm Dia	20 mA	Colorless	Through Hole	Red	1.85 V	15 °	Clear	10 mm	13.5 mm	5000 mcd	Standard
Kingbright WP813ID	627 nm	Round with Domed Top	617 nm	10 mm	Radial	10 mm Dia	20 mA	Red	Through Hole	Red	2 V	30 °	Diffused	10 mm	13.5 mm	80 mcd	Standard
Kingbright WP813ED	627 nm	Round with Domed Top	617 nm	10 mm	Radial	10 mm Dia	20 mA	Orange	Through Hole		2 V	30 °	Diffused	10 mm	13.5 mm	80 mcd	Standard
