PPPN202 Series

Catalog

CONN HDR 40POS 0.079 GOLD PCB

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Shape	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Termination	Contact Finish - Mating	Fastening Type	Number of Rows [custom]	Number of Positions	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Insulation Height [z]

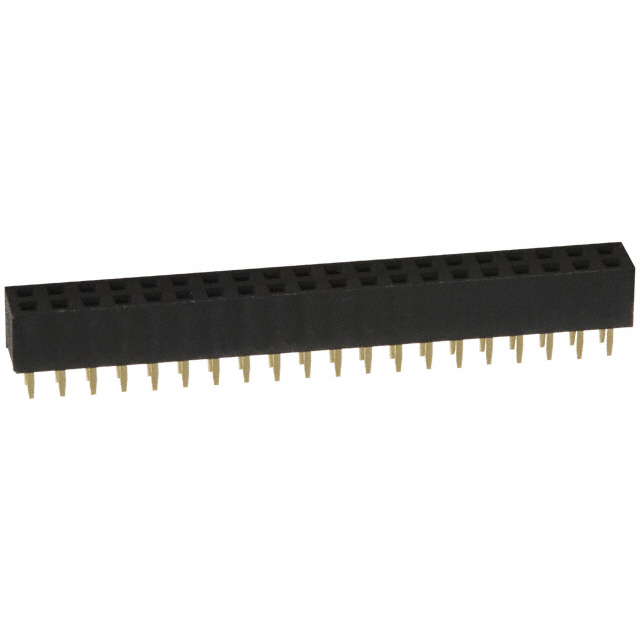

Sullins Connector Solutions PPPN202AFCN	Polyester	Phosphor Bronze	Flash	Square	Header	UL94 V-0	4.3 mm	0.169 "	All	-40 C	105 ░C	2.4 mm	0.094 in	Through Hole	0.079 "	2 mm	2 mm	0.079 in	Black	Solder	Gold	Push-Pull	2	40	Flash	Female Socket	Gold
Sullins Connector Solutions PPPN202FJFN	Polyester	Phosphor Bronze	Flash	Square	Header	UL94 V-0	4.85 mm		All	-40 C	105 ░C	3 mm	0.118 in	Right Angle Through Hole	0.079 "	2 mm	2 mm	0.079 in	Black	Solder	Gold	Push-Pull	2	40	Flash	Female Socket	Gold	0.191 in
