9876 Series
Manufacturer: Belden Inc.
Beta
⌘K

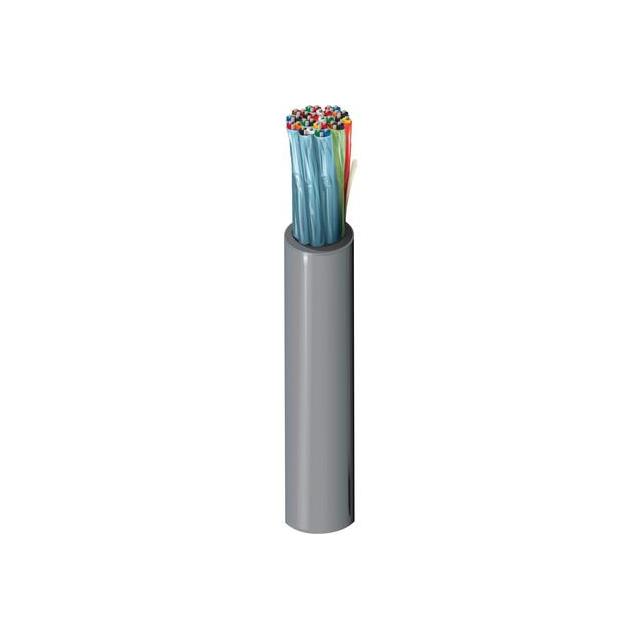

MULTI-PAIR 22COND 20AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Conductor Material | Length | Length | Cable Type | Conductor Insulation | Features | Usage | Wire Gauge | Jacket Color | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 0.6 in | 15.24 mm | 22 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Foil | Copper Tinned | 304.8 m | 1000 ft | Multi-Pair | Polypropylene (PP) | Drain Wire | Audio Control Instrumentation | 20 AWG | Chrome | UL Style 2919 | 80 °C | -20 ░C | 0.05 in | 1.27 mm |
