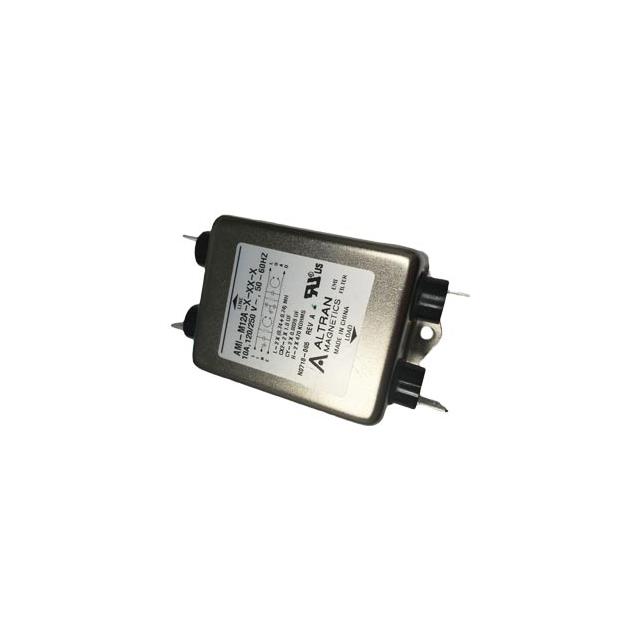

AMI-M12A Series

Catalog

LINE FILT 277VDC/VAC 5A CHAS

Part	Current	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Inductance	Applications	Termination Style	Voltage - Rated DC	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC
Altran Magnetics, LLC AMI-M12AI-3-5-B	5 A	Two Stage	40 °C	-10 °C	Single Phase	420 µH	General Purpose	Wire Leads	277 V	Chassis Mount	60 Hz	50 Hz	277 V
Altran Magnetics, LLC AMI-M12AB-6-20-B	20 A	Two Stage	40 °C	-10 °C	Single Phase	1.76 mH	General Purpose	Threaded Post (8-32)		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12AI-3-0.5-B	500 mA	Two Stage	40 °C	-10 °C	Single Phase	890 µH	General Purpose	Wire Leads	277 V	Chassis Mount	60 Hz	50 Hz	277 V
Altran Magnetics, LLC AMI-M12A-6-30-C	30 A	Two Stage	40 °C	-10 °C	Single Phase	880 µH	General Purpose	Threaded Post (10-32)		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12AC-7-20-B	20 A	Two Stage	40 °C	-10 °C	Single Phase	1.76 mH	General Purpose	IEC 320-C14 Quick Connect		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12A-1-20-C	20 A	Two Stage	40 °C	-10 °C	Single Phase	840 µH	General Purpose	Quick Connect		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12AA-1-3-B	3 A	Two Stage	40 °C	-10 °C	Single Phase	1.03 mH	General Purpose	Quick Connect		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12A-6-15-C	15 A	Two Stage	40 °C	-10 °C	Single Phase		General Purpose	Threaded Post (8-32)		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12AA-1-10-B	10 A	Two Stage	40 °C	-10 °C	Single Phase	1200 µH	General Purpose	Quick Connect		Chassis Mount	60 Hz	50 Hz	250 V
Altran Magnetics, LLC AMI-M12A-1-10-B	10 A	Two Stage	40 °C	-10 °C	Single Phase	1.48 mH	General Purpose	Quick Connect		Chassis Mount	60 Hz	50 Hz	250 V
