500592 Series

Manufacturer: Molex

Catalog

2.50MM PITCH CP-2.5 MINI WIRE-TO-WIRE RECEPTACLE HOUSING, POSITIVE LOCK, SINGLE ROW, 8 CIRCUITS

Part	Contact Type	Fastening Type	Contact Termination	Pitch [x]	Pitch [x]	Mounting Type	Note	Connector Type	Number of Rows	Number of Positions	Color	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 5005920800	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Receptacle	1	8	Natural	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
Molex 5005920400	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Receptacle	1	4	Natural	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
Molex 5005920203	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm			Receptacle	1	2	Yellow		85 °C	-40 °C

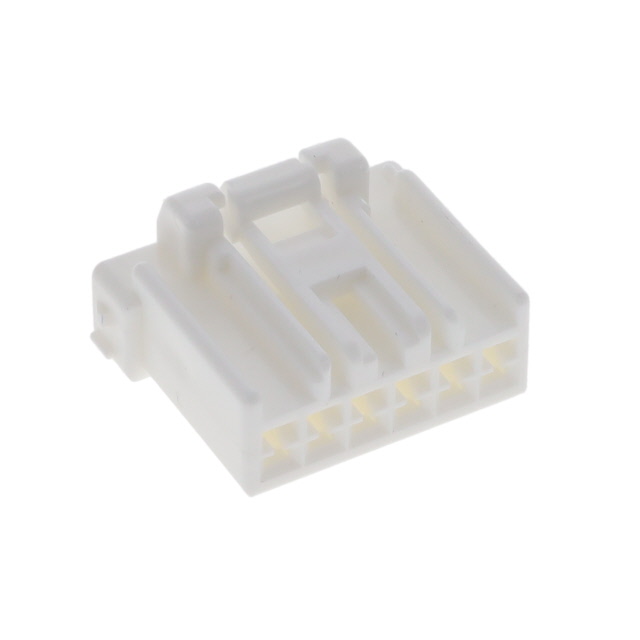

Molex 5005920600	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Receptacle	1	6	Natural	Polybutylene Terephthalate (PBT)	85 °C	-40 °C

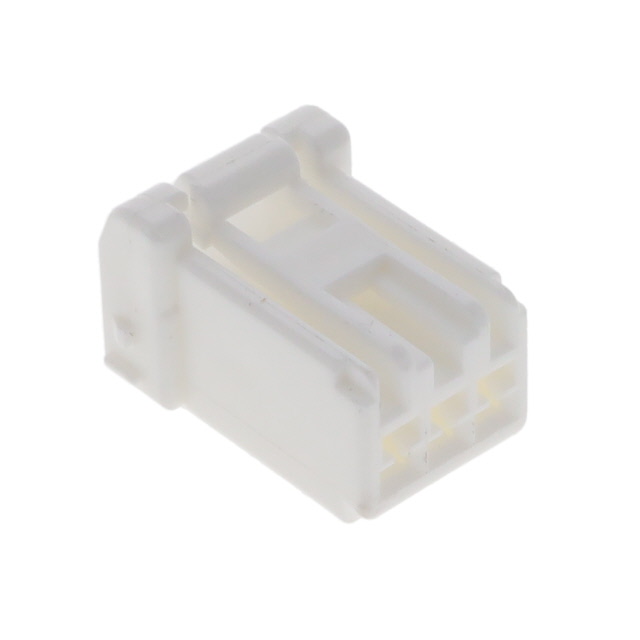

Molex 5005920300	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Receptacle	1		Natural	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
Molex 5005920200	Female Socket	Latch Lock	Crimp	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Receptacle	1	2	Natural	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
