325-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Flange Feature	Number of Positions	Contact Type	Pitch	Pitch	Contact Material	Card Thickness	Card Thickness	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Read Out	Color	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-018-500-207	2	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)

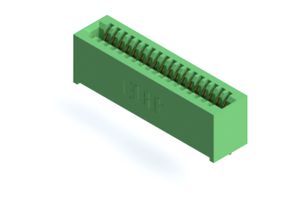

EDAC Inc. 325-018-520-101		Diallyl Phthalate (DAP)			18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in		-65 ░C	125 °C	Through Hole	Single	Green	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Gold	Solder	1	1	18
EDAC Inc. 325-018-500-209	2	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)				0.16 "	4.06 mm
EDAC Inc. 325-018-500-108		Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in		-65 ░C	125 °C	Through Hole	Single	Green	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	1	1	18
EDAC Inc. 325-018-540-207	2	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Wire Wrap

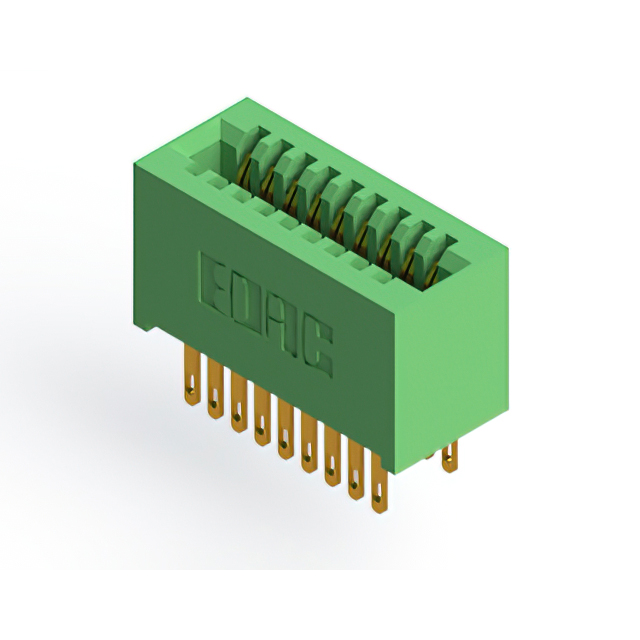

EDAC Inc. 325-018-500-201	2	Diallyl Phthalate (DAP)	2		18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)
EDAC Inc. 325-018-520-108		Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in		-65 ░C	125 °C	Through Hole	Single	Green	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Gold	Solder	1	1	18
EDAC Inc. 325-018-520-207	2	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Solder
EDAC Inc. 325-018-520-208	2	Diallyl Phthalate (DAP)	2	4-40 Flush Mount Threaded Insert Top Opening	18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in	9	-65 ░C	125 °C	Through Hole	Dual	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Gold	Solder
EDAC Inc. 325-018-500-101		Diallyl Phthalate (DAP)			18	Cantilever	0.1 "	2.54 mm	Copper Alloy	3.18 mm	0.125 in		-65 ░C	125 °C	Through Hole	Single	Green	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	1	1	18
