DB2C Series

Catalog

SWITCH SNAP ACTION SPDT 10A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Operating Force	Actuator Type	Pretravel	Pretravel	Voltage Rating - AC	Switch Function	Differential Travel	Differential Travel	Ingress Protection	Electrical Life	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Operating Position	Operating Position	Mounting Type	Termination Style	Pretravel
ZF Electronics DB2C-B1LC	120 °C	-40 C	SPDT	10 A	85 gf	Lever Straight	5 mm	0.197 "	125 V	On-Mom	0.04 in	1 mm 1.02 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.06 "	1.5 mm	11.1 mm	0.437 "	Chassis Mount	Quick Connect - 0.110" (2.8mm)

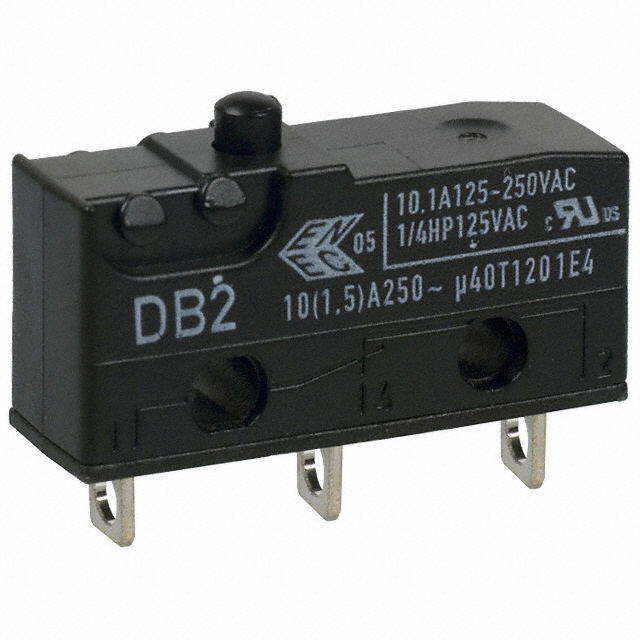

ZF Electronics DB2CA1AA	120 °C	-40 C	SPDT	10 A	0.25 kgf	Round (Pin Plunger)	1 mm	0.04 in	125 V	On-Mom	0.004 in	0.1 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.025 in	0.6 mm	8.4 mm	0.33 in	Chassis Mount	Solder Lug
ZF Electronics DB2CA1RC	120 °C	-40 C	SPDT	10 A	95 gf	Lever Roller	5 mm	0.197 "	125 V	On-Mom	0.04 in	1 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.06 "	1.5 mm	16.2 mm	0.638 in	Chassis Mount	Solder Lug

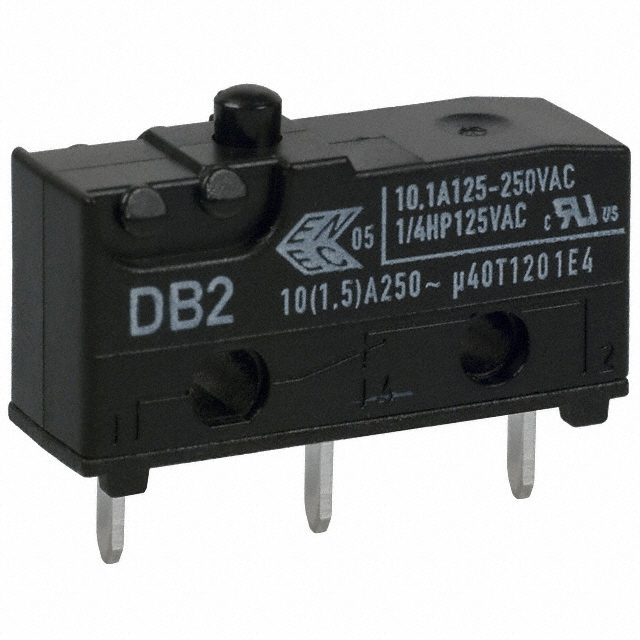

ZF Electronics DB2CC1AA	120 °C	-40 C	SPDT	10 A	0.25 kgf	Round (Pin Plunger)	1 mm	0.04 in	125 V	On-Mom	0.004 in	0.1 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.025 in	0.6 mm	8.4 mm	0.33 in	Through Hole	PC Pin

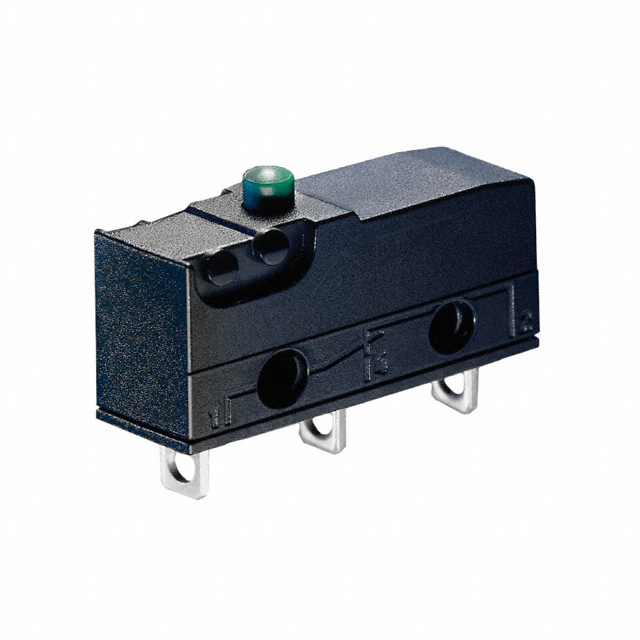

ZF Electronics DB2CB1AA	120 °C	-40 C	SPDT	10 A	0.25 kgf	Round (Pin Plunger)	1 mm	0.04 in	125 V	On-Mom	0.004 in	0.1 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.025 in	0.6 mm	8.4 mm	0.33 in	Chassis Mount	Quick Connect - 0.110" (2.8mm)
ZF Electronics DB2CB1RC	120 °C	-40 C	SPDT	10 A	95 gf	Lever Roller	5 mm	0.197 "	125 V	On-Mom	0.04 in	1 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.06 "	1.5 mm	16.2 mm	0.638 in	Chassis Mount	Quick Connect - 0.110" (2.8mm)
ZF Electronics DB2CA1LB	120 °C	-40 C	SPDT	10 A	100 gf	Lever Straight	0.178 in		125 V	On-Mom	0.027 in	0.7 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.06 "	1.5 mm			Chassis Mount	Solder Lug	4.5 mm
ZF Electronics DB2C-A1LC	120 °C	-40 C	SPDT	10 A	85 gf	Lever Straight	5 mm	0.197 "	125 V	On-Mom	0.04 in	1 mm	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	0.06 "	1.5 mm	11.1 mm	0.437 "	Chassis Mount	Solder Lug
ZF Electronics DB2C-A1MC	120 °C	-40 C	SPDT	10 A	35 gf	Lever Straight	10 mm	0.394 in	125 V	On-Mom	0.07 in	1.8 mm	IP50 - Dust Protected	6000 Cycles	10000000 Cycles	0.158 in	4 mm	12.5 mm	0.492 "	Chassis Mount	Solder Lug
