7462-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

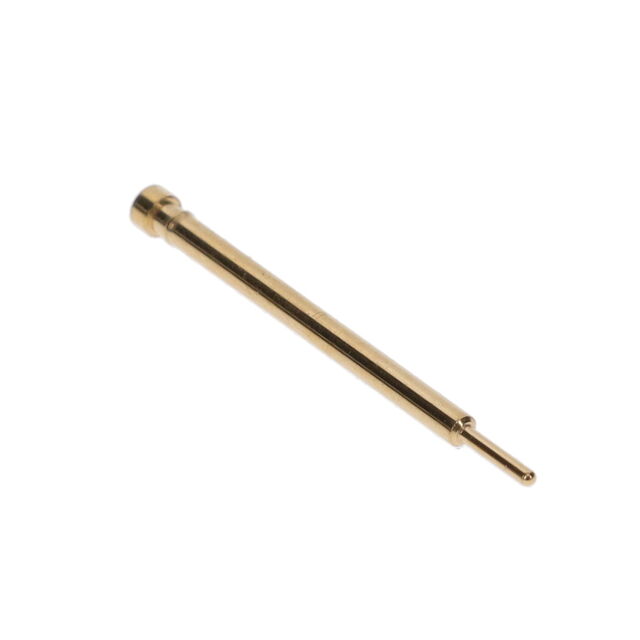

RECEPTACLE WITH A STANDARD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Socket Depth | Socket Depth | Length - Overall [x] | Length - Overall [x] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Finish | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.02 in | 0.38 mm | 0.015 " | 0.51 mm | 0.042 in | 1.07 mm | 0.22 in | 5.59 mm | 0.7 in | 17.78 mm | Solder | 1.4 mm | 0.055 in | 30 Áin | 0.76 Ám | Beryllium Copper | 0.031 in | 0.79 mm | 0.51 mm | 0.02 in | Gold | Standard Tail |
