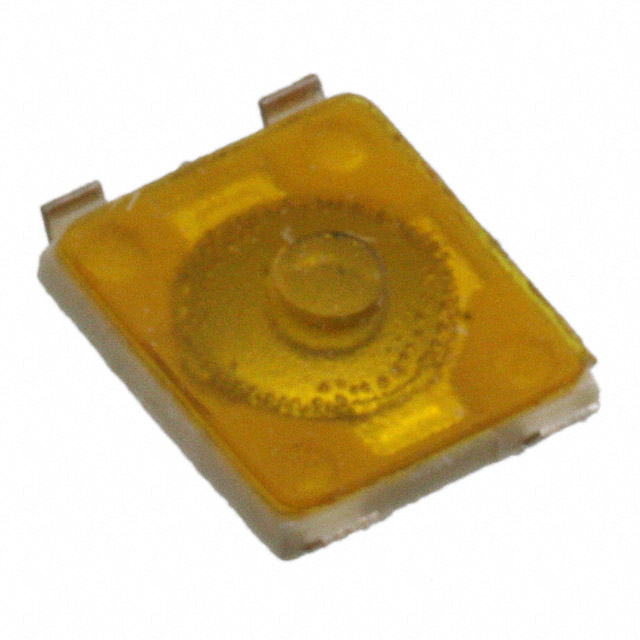

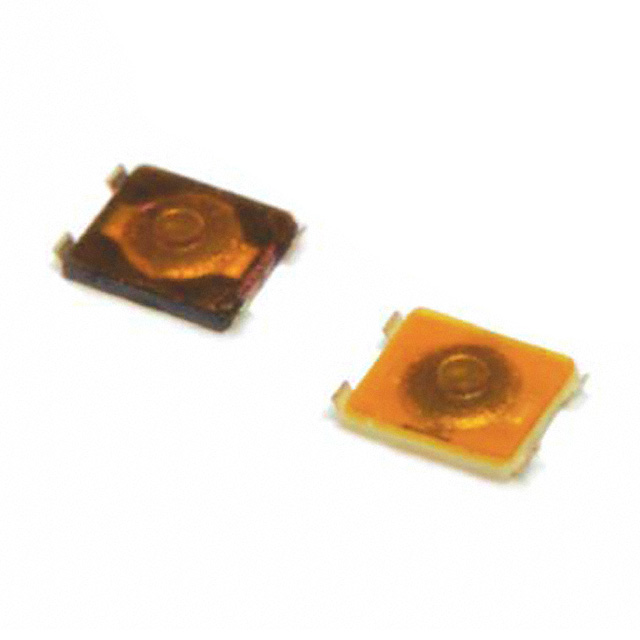

TL3700 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Switch Travel | Mechanical Life | Switch Function | Circuit | Outline [y] | Outline [x] | Actuator Type | Operating Force | Termination Style | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Actuator Height off PCB, Vertical | Mounting Type | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.15 mm | 100000 Cycles | Off-Mom | SPST-NO | 2.6 mm | 3 mm | Standard | 100 gf | Gull Wing | Non-Illuminated | 85 °C | -40 C | 0.02 A 15 VDC | 0.65 mm | Surface Mount | Top Actuated |
E-Switch | 0.15 mm | 100000 Cycles | Off-Mom | SPST-NO | 2.6 mm | 3 mm | Standard | 160 gf | Gull Wing | Non-Illuminated | 85 °C | -40 C | 0.02 A 15 VDC | 0.65 mm | Surface Mount | Top Actuated |
