7307P3 Series

Catalog

SWITCH TOGGLE 3PDT 5A 120V

Part	Voltage Rating - AC	Termination Style	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Features	Electrical Life	Switch Function	Illumination	Bushing Thread	Current Rating (Amps)	Actuator Length [x]	Ingress Protection
Littelfuse/Commercial Vehicle Products 7307P3HZGI	120 V	Solder Lug	3PDT	0.25 in	28 V	Brass Chrome Plated	-30 ░C	85 °C	Flat Anti-Rotation	Epoxy Potted	40000 Cycles	On-Off-Mom	Non-Illuminated	1/4-40	5 A	11.43 mm
Littelfuse/Commercial Vehicle Products 7307P3YWGE	120 V	Wire Wrap	3PDT	0.25 in	28 V	Brass Chrome Plated	-30 ░C	85 °C	Flat Anti-Rotation	Epoxy Sealed Terminals	40000 Cycles	On-Off-Mom	Non-Illuminated	1/4-40	5 A	11.43 mm
Littelfuse/Commercial Vehicle Products 7307P3DZQE	120 V	Solder Lug	3PDT	0.25 in	28 V	Brass Chrome Plated	-30 ░C	85 °C	Flat Anti-Rotation	Epoxy Sealed Terminals	40000 Cycles	On-Off-Mom	Non-Illuminated	1/4-40	5 A	11.43 mm

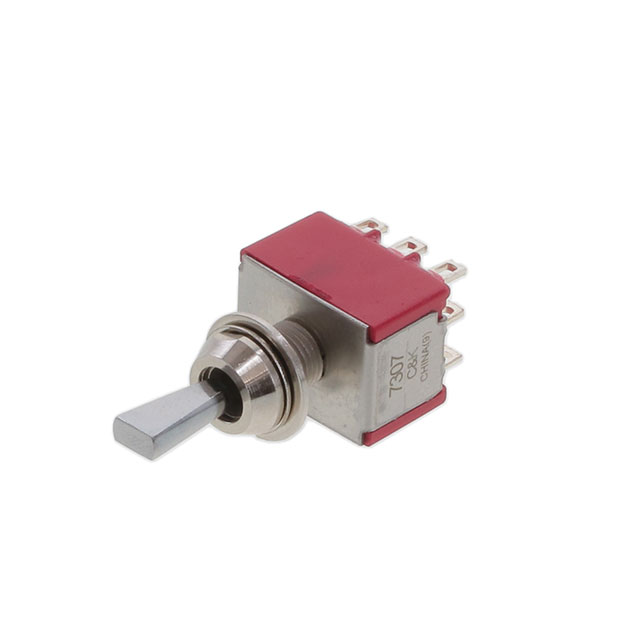

Littelfuse/Commercial Vehicle Products 7307P3YZQE	120 V	Solder Lug	3PDT	0.25 in	28 V	Brass Chrome Plated	-30 ░C	85 °C	Flat Anti-Rotation	Epoxy Sealed Terminals	40000 Cycles	On-Off-Mom	Non-Illuminated	1/4-40	5 A	11.43 mm
Littelfuse/Commercial Vehicle Products 7307P3CWW5QI	120 V	Wire Wrap	3PDT	0.25 in	28 V	Brass Chrome Plated	-30 ░C	85 °C	Flat Anti-Rotation	Epoxy Potted	40000 Cycles	On-Off-Mom	Non-Illuminated	1/4-40	5 A	11.43 mm	IP67 - Dust Tight Waterproof
