895-086 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Pitch	Pitch	Number of Positions/Bay/Row	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Color	Termination	Number of Positions	Read Out	Card Type

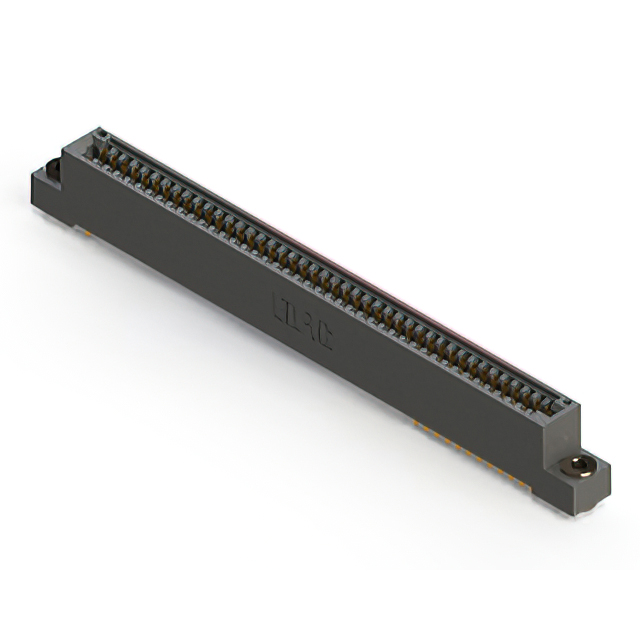

EDAC Inc. 895-086-521-203	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-520-804	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.156 "		3.96 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-559-508	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2		4-40 Threaded Insert Top Mount Opening		Right Angle Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-524-812	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-540-508	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2		4-40 Threaded Insert Top Mount Opening		Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Wire Wrap	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-520-502	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.128 "		3.25 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-540-507	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2		M3 Threaded Insert Top Mount Opening		Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Wire Wrap	86	Dual	Non Specified - Dual Edge

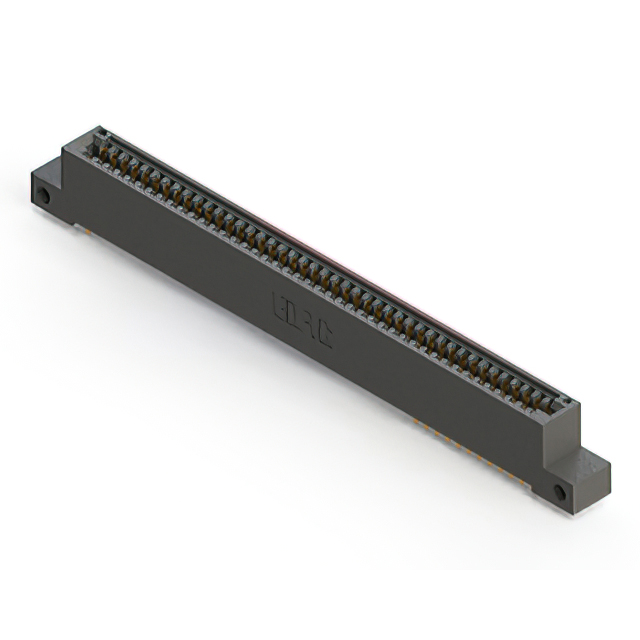

EDAC Inc. 895-086-524-212	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-500-504	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.156 "		3.96 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder Eyelet(s)	86	Dual	Non Specified - Dual Edge
EDAC Inc. 895-086-525-512	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	125 °C	-40 C	Copper Alloy	0.1 "	2.54 mm	43	2	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Solder	86	Dual	Non Specified - Dual Edge
