RP182CD Series

Catalog

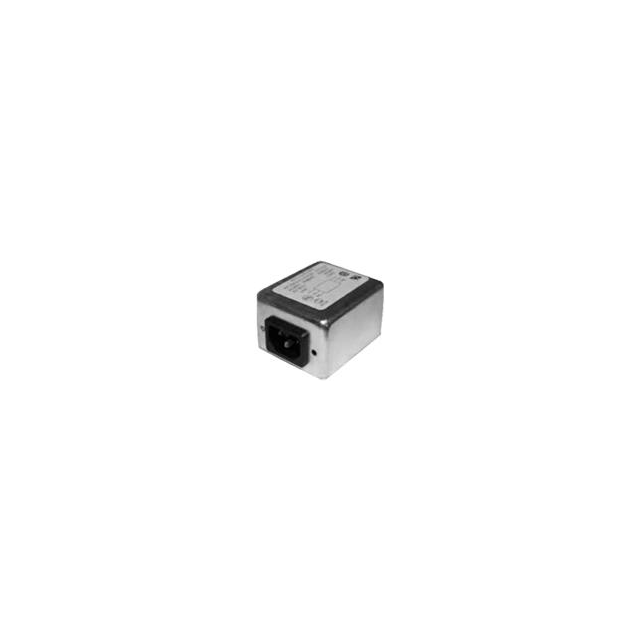

LINE FILTER 250VAC 10A CHASSIS

Part	Approval Agency	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Current	Applications	Voltage - Rated AC
Astrodyne TDI RP182CD-10-0-QD	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Quick Connect	10 A	General Purpose	250 V
Astrodyne TDI RP182CD-10-2.2-QD	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Quick Connect	10 A	General Purpose	250 V
Astrodyne TDI RP182CD-3-2.2-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	3 A	General Purpose	250 V
Astrodyne TDI RP182CD-3-3.3-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	3 A	General Purpose	250 V
Astrodyne TDI RP182CD-10-2.2-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	10 A	General Purpose	250 V
Astrodyne TDI RP182CD-10-0-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	10 A	General Purpose	250 V
Astrodyne TDI RP182CD-6-2.2-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	6 A	General Purpose	250 V
Astrodyne TDI RP182CD-3-0-W	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Wire Leads	3 A	General Purpose	250 V
Astrodyne TDI RP182CD-6-.47-QD	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Quick Connect	6 A	General Purpose	250 V
Astrodyne TDI RP182CD-6-0-QD	CE CSA SEMKO UR	Two Stage	100 °C	-25 °C	Single Phase	Chassis Mount	60 Hz	50 Hz	IEC 320-C14 Quick Connect	6 A	General Purpose	250 V
