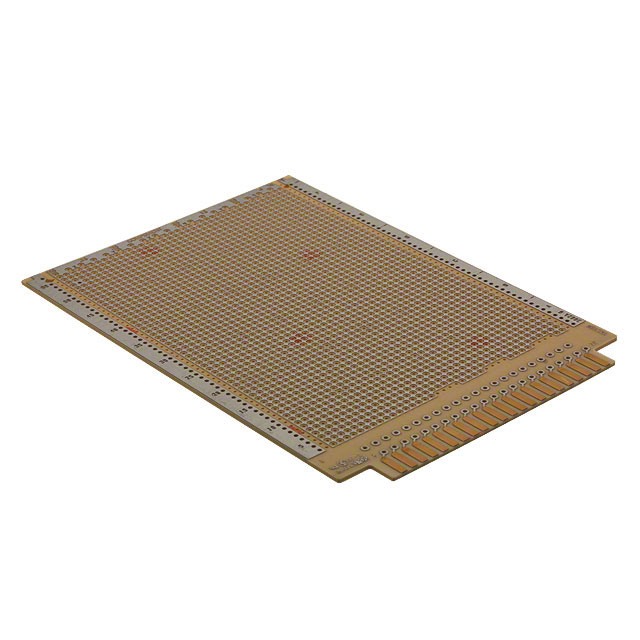

3662 Series
Manufacturer: Vector Electronics
Beta
⌘K
PLUGBOARD CARD EDGE NPTH
| Part | Board Thickness | Board Thickness | Board Thickness | Circuit Pattern | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Edge Contacts | Edge Contacts | Edge Contacts | Plating | Hole Diameter [diameter] | Hole Diameter [diameter] | Pitch | Pitch | Proto Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vector Electronics | 1.57 mm | 0.062 " | 0.0625 in | Pad Per Hole (Round) Ground Plane | 6.5 in | 4.5 " | 165.1 mm | 114.3 mm | 44 | 3.96 mm | 0.156 in | Non-Plated Through Hole (NPTH) | 1.07 mm | 0.042 " | 0.1 " | 2.54 mm | Card Edge Plugboard |
