CD Series

Catalog

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 1A FUSE/SWITCH ST 1 PORT

Part	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Approval Agency	Filter Type	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Current Rating - Appliance Inlet	Material Flammability Rating	Switch Features	Fuse Holder, Drawer	Current Rating - Filter	Connector Style	Mounting Type	Features
SCHURTER Inc. CD14.1101.151	0.189 "	4.8 mm	Quick Connect	250 VAC	cULus ENEC	Filtered (EMI RFI) - Commercial	IP40	28.5 mm	67.5 mm	Receptacle Male Blades - Module	10 A	UL94 V-0	Switch On-Off	Fuse Holder	1 A	IEC 320-C14	Flange Panel Mount
SCHURTER Inc. CD34.1133.151	0.189 "	4.8 mm	Quick Connect		cULus ENEC		IP40	28.5 mm	67.5 mm	Receptacle Male Blades - Module		UL94 V-0	Switch On-Off	Fuse Holder		IEC 320-C14	Flange Panel Mount

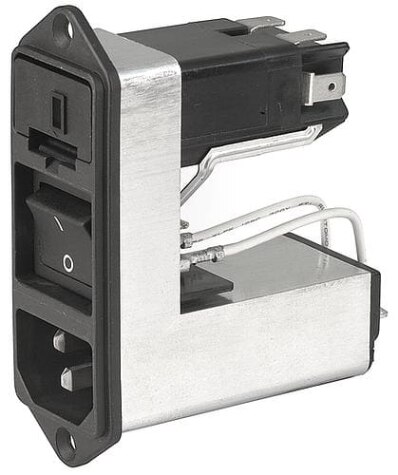

SCHURTER Inc. CD41.1501.151	0.189 "	4.8 mm	Quick Connect	250 VAC	cULus ENEC	Filtered (EMI RFI) - Commercial	IP40	28.5 mm	67.5 mm	Receptacle Male Blades - Module	10 A	UL94 V-0	Switch On-Off	Fuse Holder	6 A	IEC 320-C14	Flange Panel Mount
SCHURTER Inc. CD61.4501.151	0.189 "	4.8 mm	Quick Connect	250 VAC	cULus ENEC	Filtered (EMI RFI) - Commercial	IP40	28.5 mm	67.5 mm	Receptacle Male Blades - Module	10 A	UL94 V-0	Switch On-Off	Fuse Holder	10 A	IEC 320-C14	Flange Panel Mount	Voltage Selector

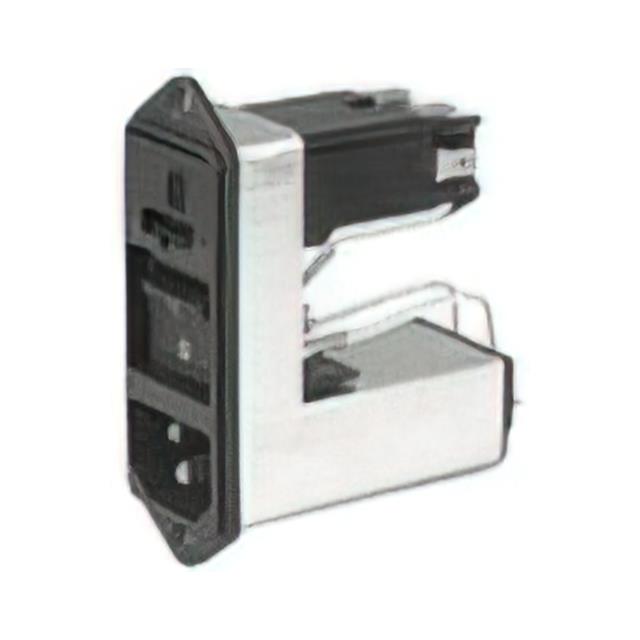

SCHURTER Inc. CD21.4501.151	0.189 "	4.8 mm	Quick Connect	250 VAC	cULus ENEC	Filtered (EMI RFI) - Commercial	IP40	28.5 mm	67.5 mm	Receptacle Male Blades - Module	10 A	UL94 V-0	Switch On-Off	Fuse Holder	2 A	IEC 320-C14	Flange Panel Mount	Voltage Selector
