828590 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Style	Contact Shape	Connector Type	Shrouding	Contact Material	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Number of Rows [custom]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]

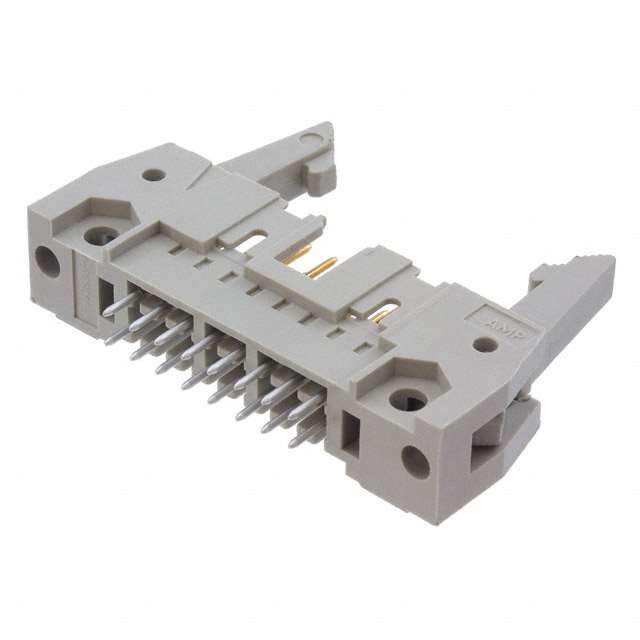

TE Connectivity AMP Connectors 1-828590-6	118.1 µin	3 µm	Board to Cable/Wire	Circular	Header	Shrouded - 4 Wall	Brass	16	All	Gold or Gold-Palladium	0.652 in	16.56 mm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	2	Solder	0.1 "	2.54 mm	Tin	Gray	Male Pin	Polyester Glass Filled	0.118 in	3 mm	8.8 mm	0.346 in	Through Hole	31.5 µin	0.8 µm

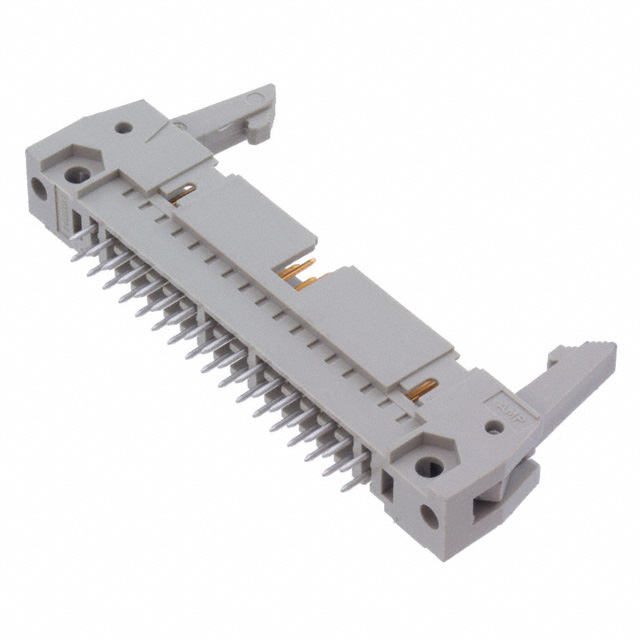

TE Connectivity AMP Connectors 3-828590-4	118.1 µin	3 µm	Board to Cable/Wire	Circular	Header	Shrouded - 4 Wall	Brass		All	Gold or Gold-Palladium	0.652 in	16.56 mm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	2	Solder	0.1 "	2.54 mm	Tin	Gray	Male Pin	Polyester Glass Filled	0.118 in	3 mm	8.8 mm	0.346 in	Through Hole	31.5 µin	0.8 µm	34

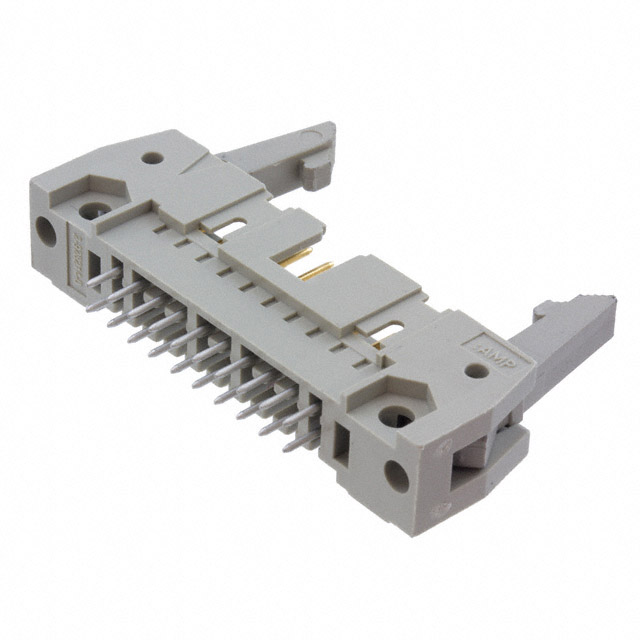

TE Connectivity AMP Connectors 2-828590-0	118.1 µin	3 µm	Board to Cable/Wire	Circular	Header	Shrouded - 4 Wall	Brass	20	All	Gold or Gold-Palladium	0.652 in	16.56 mm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	2	Solder	0.1 "	2.54 mm	Tin	Gray	Male Pin	Polyester Glass Filled	0.118 in	3 mm	8.8 mm	0.346 in	Through Hole	31.5 µin	0.8 µm

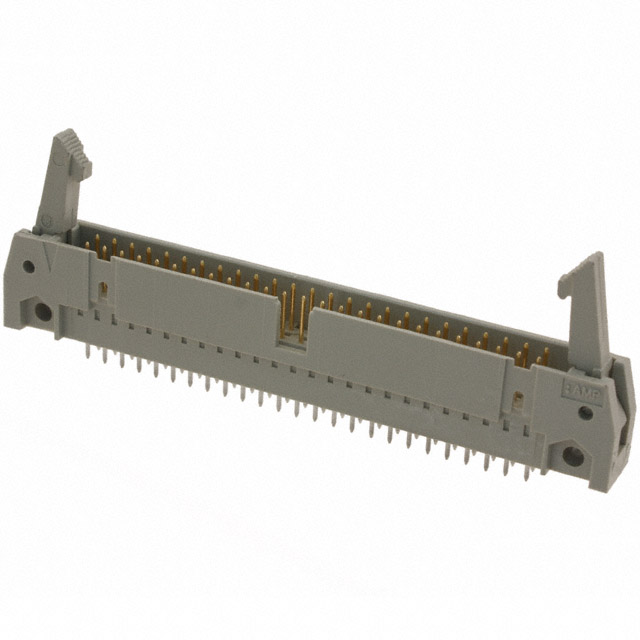

TE Connectivity AMP Connectors 5-828590-0	118.1 µin	3 µm	Board to Cable/Wire	Circular	Header	Shrouded - 4 Wall	Brass	50	All	Gold or Gold-Palladium	0.652 in	16.56 mm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	2	Solder	0.1 "	2.54 mm	Tin	Gray	Male Pin	Polyester Glass Filled	0.118 in	3 mm	8.8 mm	0.346 in	Through Hole	31.5 µin	0.8 µm
TE Connectivity AMP Connectors 4-828590-0	118.1 µin	3 µm	Board to Cable/Wire	Circular	Header	Shrouded - 4 Wall	Brass	40	All	Gold or Gold-Palladium	0.652 in	16.56 mm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	2	Solder	0.1 "	2.54 mm	Tin	Gray	Male Pin	Polyester Glass Filled	0.118 in	3 mm	8.8 mm	0.346 in	Through Hole	31.5 µin	0.8 µm
