ECA.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Number of Positions | Primary Material | Shell Material | Ingress Protection | Shell Size - Insert | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Mounting Type | Color | Fastening Type | Contact Finish - Mating | Orientation | Connector Type | Mounting Feature | Termination | Insert Material | Material Flammability Rating | Housing Color | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 4 | Metal | Brass | IP50 - Dust Protected | 304 | Bronze | 1.5 Ám | 59 Áin | Chrome | 7 A | -55 C | 250 °C | Shielded | Panel Mount | Silver | Push-Pull | Gold | A | Receptacle Female Sockets | Front and Rear Side Nut | Crimp | Polyetheretherketone (PEEK) | UL94 V-0 | ||

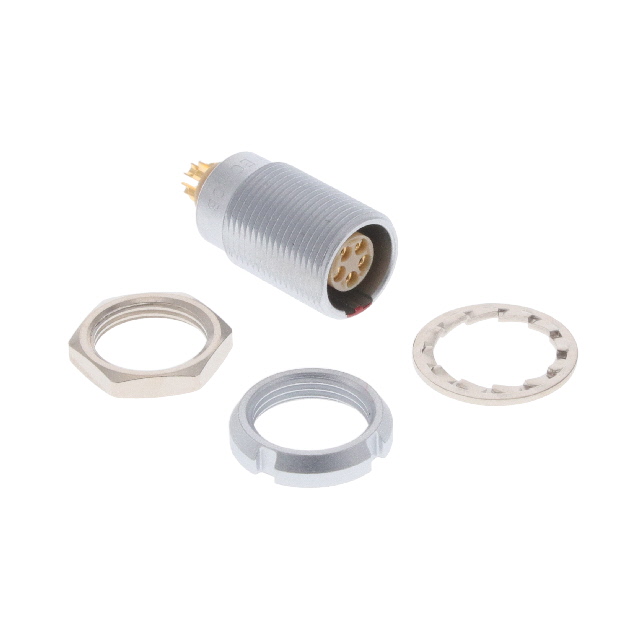

LEMO | 5 | Metal | Brass | IP50 - Dust Protected | 305 | Bronze | 1.5 Ám | 59 Áin | Chrome | 6.5 A | -55 C | 250 °C | Shielded | Panel Mount Through Hole | Silver | Push-Pull | Gold | A | Receptacle Female Sockets | Front and Rear Side Nut | Solder | Polyetheretherketone (PEEK) | UL94 V-0 | ||
 LEMO | 5 | Metal | Brass | IP50 - Dust Protected | 305 | Bronze | 1.5 Ám | 59 Áin | Chrome | 6.5 A | -55 C | 250 °C | Shielded | Panel Mount | Silver | Push-Pull | Gold | A | Receptacle Female Sockets | Front and Rear Side Nut | Polyetheretherketone (PEEK) | UL94 V-0 | |||
LEMO | Aluminum Alloy | IP50 - Dust Protected | Anodized | -55 C | 250 °C | Shielded | Panel Mount | Detent Lock Push-Pull | A | Insert Shell | Bulkhead - Front Side Nut | Black | Contacts Not Included; Insert Not Included |
