FI-W Series

Catalog

CONN HEADER SMD R/A 15POS 1.25MM

Part	Contact Type	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Rows [custom]	Mounting Type	Termination	Contact Length - Mating	Contact Length - Mating	Connector Type	Style	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Note	Color	Pitch	Pitch	Contact Termination	Number of Positions [custom]
JAE Electronics FI-W15P-HFE-E1500	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black	15	1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

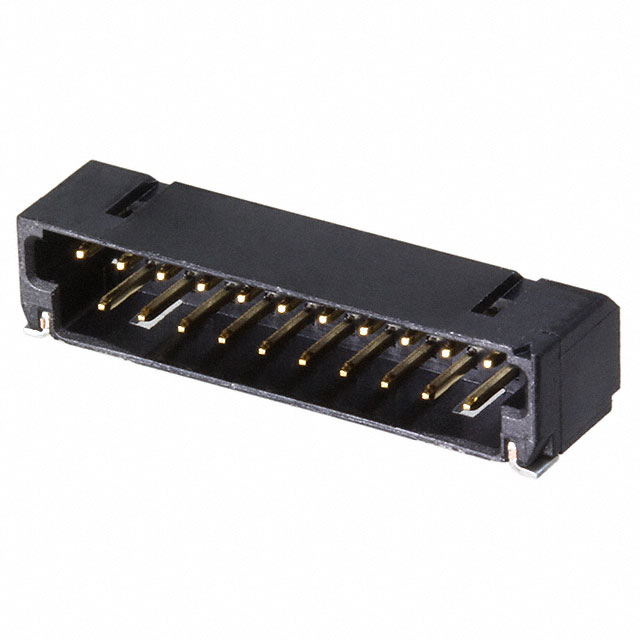

JAE Electronics FI-W21P-HFE-E1500	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black	21	1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

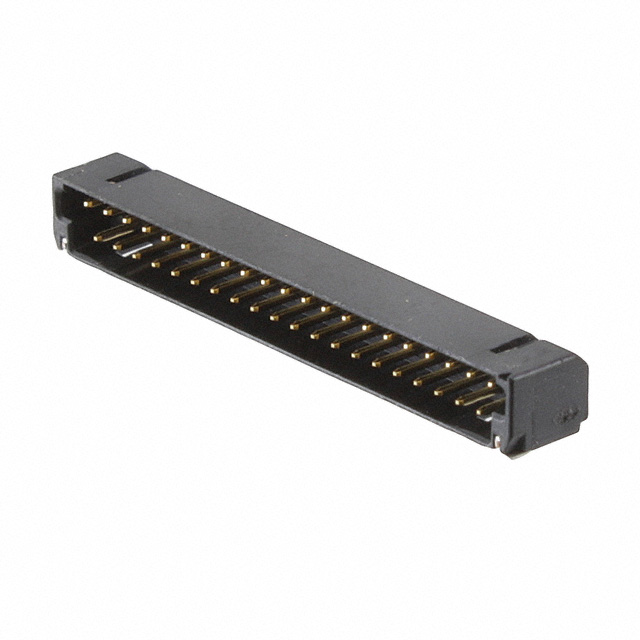

JAE Electronics FI-W41P-HFE	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black	41	1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

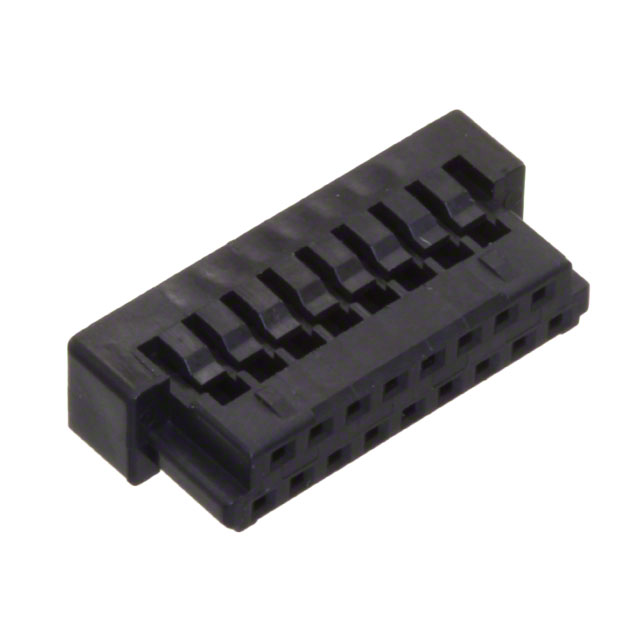

JAE Electronics FI-W17S	Female Socket											2	Free Hanging (In-Line)				Plug									Glass Filled Nylon 6/6 Polyamide (PA66)					Contacts Not Included	Black	0.049 in	1.25 mm	Crimp

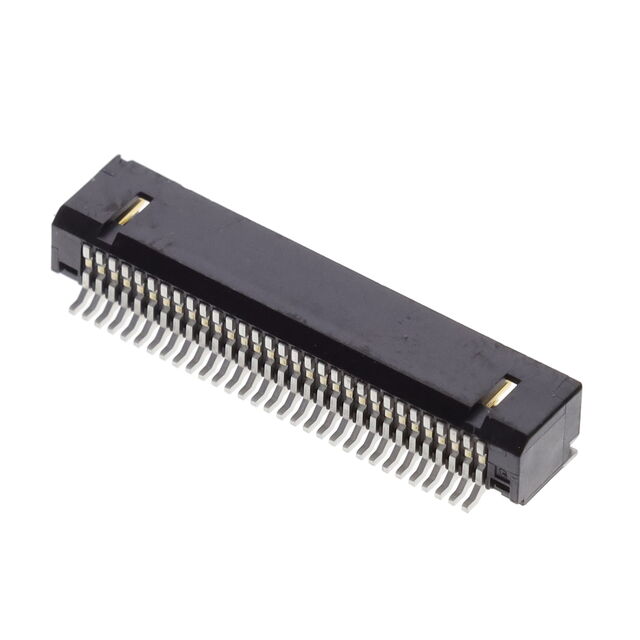

JAE Electronics FI-W31P-HFE-E1500	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black		1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy						31

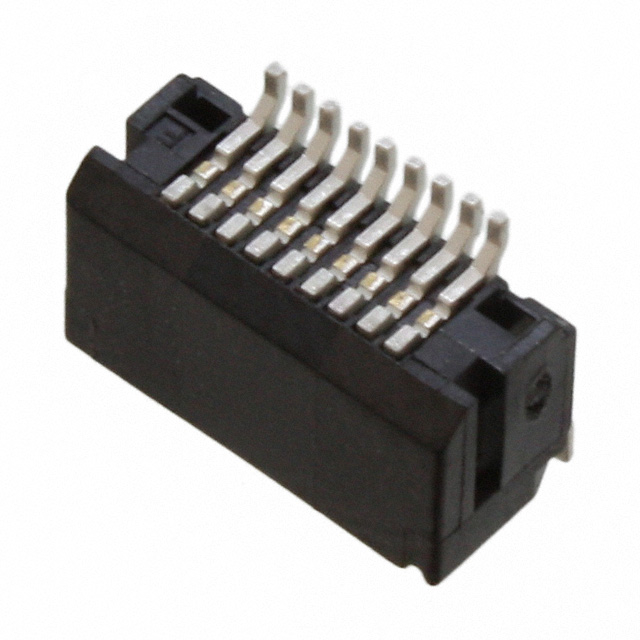

JAE Electronics FI-W9P-HFE	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black	9	1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

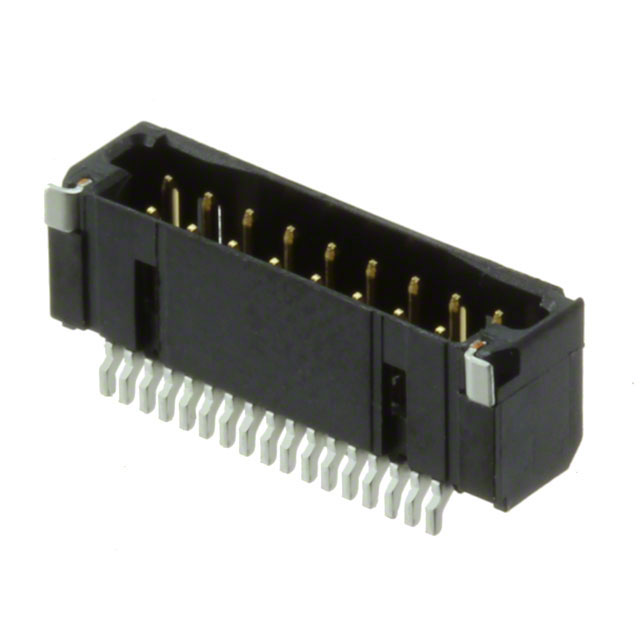

JAE Electronics FI-W17P-HFE	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black		1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

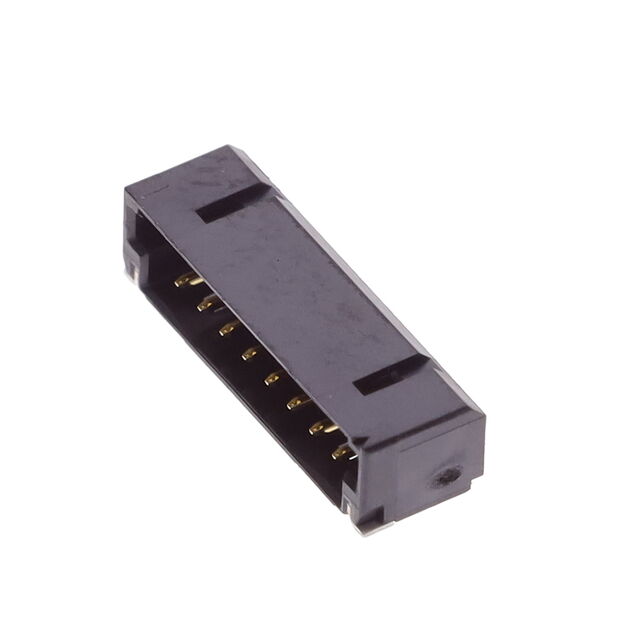

JAE Electronics FI-W17P-HFE-E1500	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black		1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

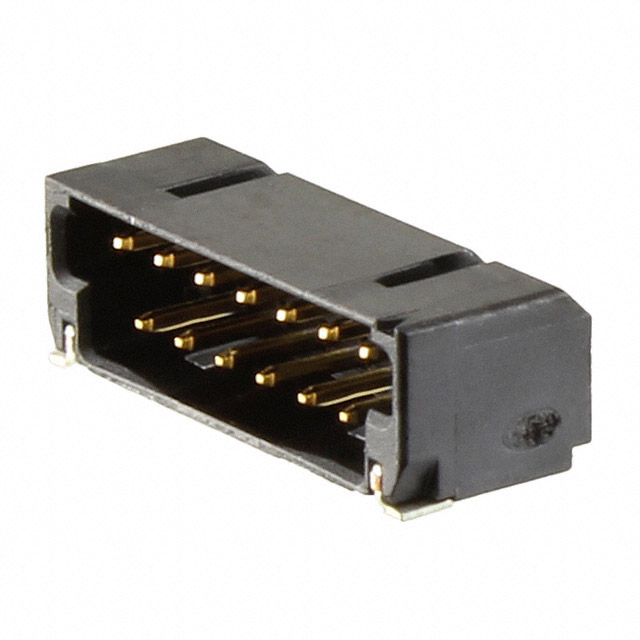

JAE Electronics FI-W13P-HFE	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black	13	1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy

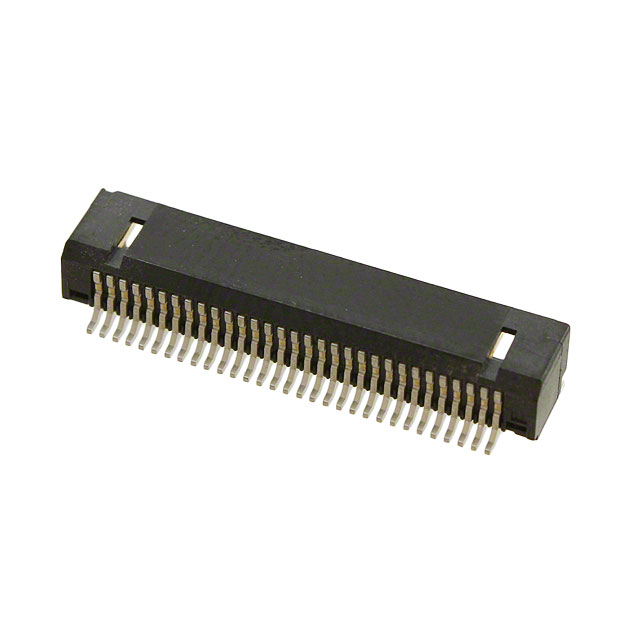

JAE Electronics FI-W31P-HFE	Male Pin	UL94 V-0	Solder Retention	80 °C	-40 C	200 V	Black		1.4 mm	0.055 in	Shrouded - 4 Wall	2	Right Angle Surface Mount	Solder	2.4 mm	0.094 in	Receptacle	Board to Cable/Wire	3.7 mm	0.146 in	Friction Lock	Gold	All	1 A	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	Square	0.049 in	1.25 mm	Tin Tin-Alloy						31
