EVQ-P4 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage [x]	Circuit	Switch Function	Termination Style	Mounting Type	Actuator Type	Outline [x]	Outline [y]	Illumination	Actuator Length, Right Angle	Switch Travel	Actuator Orientation	Operating Force	Actuator Length, Right Angle [x]

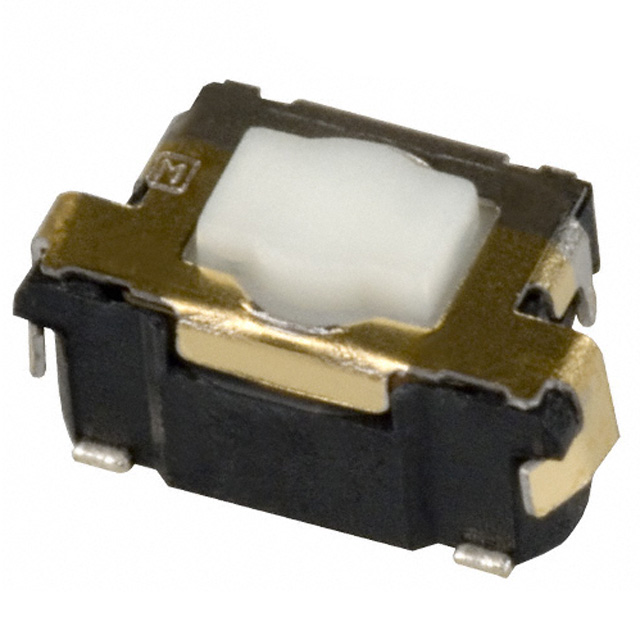

Panasonic Industrial Automation Sales EVQ-P4203M	1000000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated
Panasonic Industrial Automation Sales EVQ-P4403M	500000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated	240 gf
Panasonic Industrial Automation Sales EVQ-P4603M	200000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated	350 gf
Panasonic Industrial Automation Sales EVQ-P4003M	1000000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated	100 gf

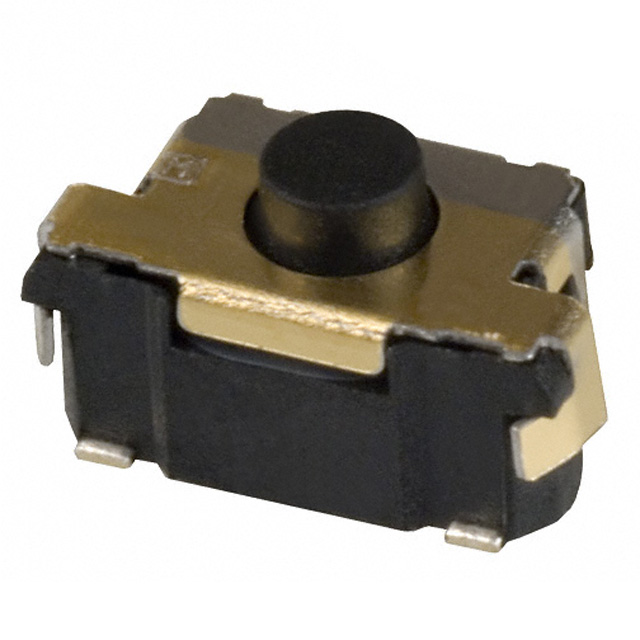

Panasonic Industrial Automation Sales EVQ-P4M03K	200000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Standard	6.2 mm	2.55 mm	Non-Illuminated		0.7 mm	Side Actuated	0.5 kgf	2.5 mm
Panasonic Industrial Automation Sales EVQ-P42B3M	1000000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated
Panasonic Industrial Automation Sales EVQ-P44B3M	500000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Rectangular Button	6.2 mm	2.55 mm	Non-Illuminated	2.1 mm	0.25 mm	Side Actuated	240 gf

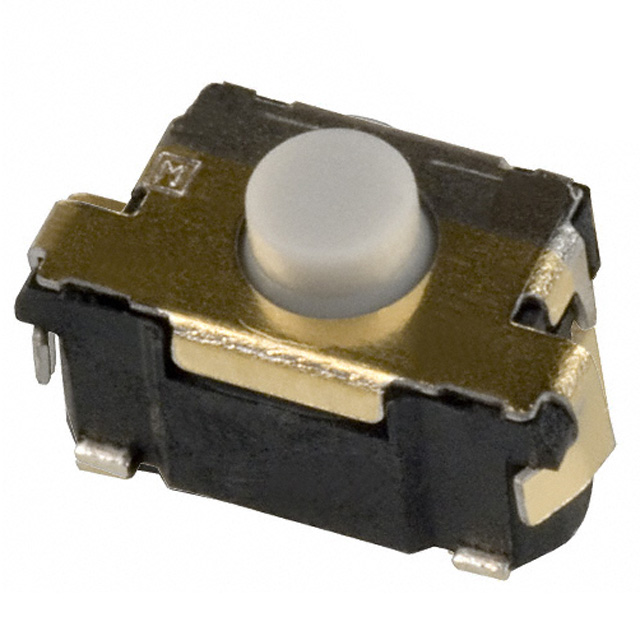

Panasonic Industrial Automation Sales EVQ-P4KB3Q	500000 Cycles	85 °C	-40 °C	0.02 A 15 VDC	SPST-NO	Off-Mom	SMD (SMT) Tab	Edge Mount Right Angle	Standard	6.2 mm	2.55 mm	Non-Illuminated		0.7 mm	Side Actuated	350 gf	2.5 mm
