170454 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

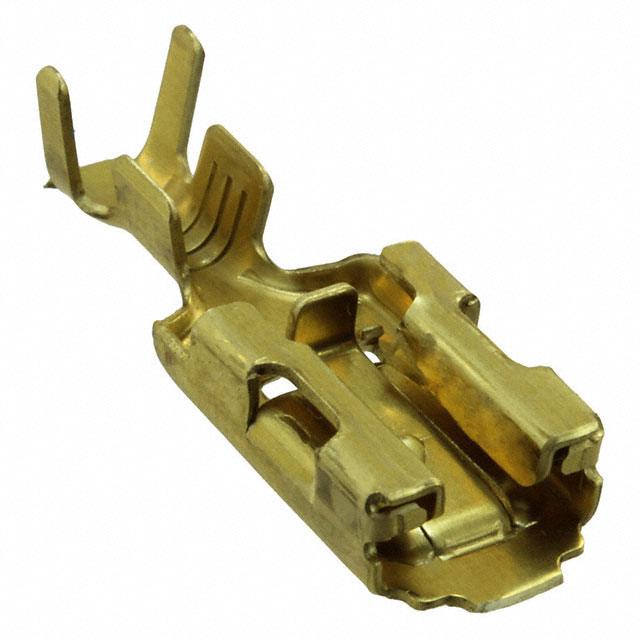

CONN QC RCPT 14-18AWG 0.250
| Part | Gender | Termination | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Tab Thickness | Tab Thickness | Mounting Type | Length - Overall | Length - Overall | Contact Material | Tab Width | Tab Width | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | Crimp | Standard | 14 AWG | 18 AWG | Non-Insulated | 0.032 in | 0.81 mm | Free Hanging (In-Line) | 22.8 mm | 0.898 in | Brass | 6.35 mm | 0.25 in | 0.134 in | 0.087 in | 2.21 mm | 3.4 mm |
