AR0237AT Series

CMOS Image Sensor, Digital, 2.1 MP/Full HD, 1/2.7-inch

Catalog

CMOS Image Sensor, Digital, 2.1 MP/Full HD, 1/2.7-inch

Part	Supplied Contents	Sensor Type	Utilized IC / Part	Pixel Size [x]	Pixel Size [y]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Frames per Second	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Voltage - Supply	Active Pixel Array [y]	Active Pixel Array [x]	Grade	Active Pixel Array [custom]	Active Pixel Array [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Qualification
ON Semiconductor AR0237CSSC12SPRAH3-GEVB	Board(s)	Image Sensor	AR0237CS
ON Semiconductor AR0237CSSC12SHRA0-DR				3 µm	3 µm	CMOS	-30 ░C	85 °C	48-PLCC	60	11.43	11.43	48-PLCC	1.8 V 2.8 V	1080	1920
ON Semiconductor AR0237ATSC12XUEA0-DPBR				3 µm	3 µm	CMOS	-40 °C	105 ░C	80-LBGA	60			80-IBGA (10x10)				Automotive	1088	1928	1.95 V 3.1 V	1.7 V 2.5 V	AEC-Q100
ON Semiconductor AR0237CSSC00SUEA0-DR				3 µm	3 µm	CMOS	-30 ░C	85 °C	80-LBGA	60			80-IBGA (10x10)	1.8 V 2.8 V	1080	1920

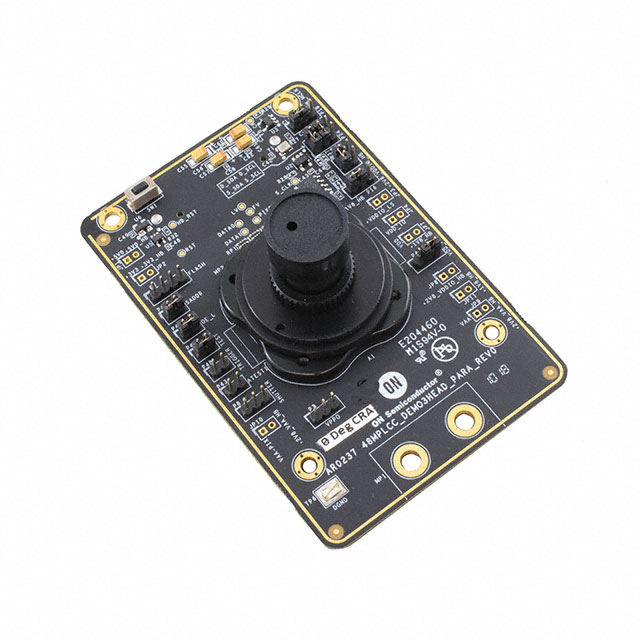

ON Semiconductor AR0237IRSH00SPRAH3-GEVB	Board(s)	Image Sensor	AR0237IR

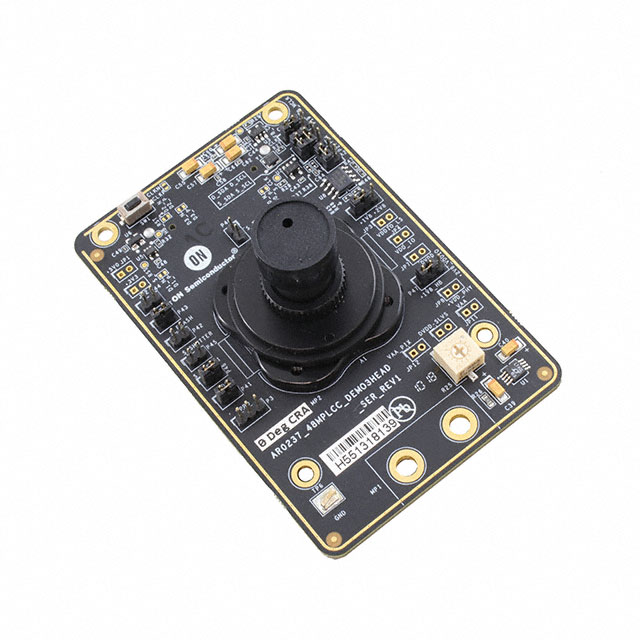

ON Semiconductor AR0237IRSH00SHRAH3-GEVB	Board(s)	Image Sensor	AR0237IR

Catalog

CMOS Image Sensor, Digital, 2.1 MP/Full HD, 1/2.7-inch

Key Features

• Superior Low−light Performance

• Latest 3.0 μm pixel with DR−Pix Technology with Dual Conversion Gain

• Full HD Support at Up to 1080p 60 fps for Superior Video Performance

• Linear or High Dynamic Range Capture

• Supports Line Interleaved T1/T2 Readout to Enable HDR Processing in ISP Chip

• Support for External Mechanical Shutter

• On−chip Phase−locked Loop (PLL) Oscillator

• Integrated Position−based Color and Lens Shading Correction

• Slave Mode for Precise Frame−rate Control

• Stereo/3D Camera Support

• Statistics Engine

• Data Interfaces: Four−lane Serial High− speed Pixel Interface (HiSPi) Differential Signaling (SLVS and HiVCM), or Parallel

• Auto Black Level Calibration

• High−speed Configurable Context Switching

• Temperature Sensor

Description
