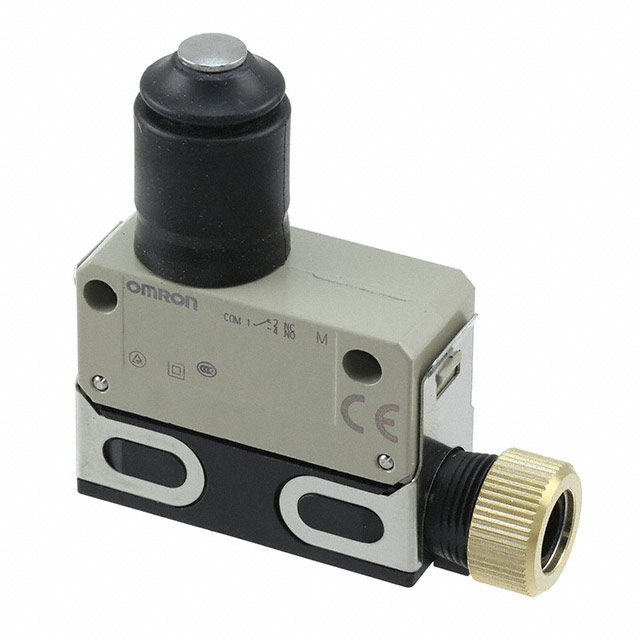

D4E-1F20 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Termination Style | Electrical Life | Voltage Rating - DC | Pretravel | Pretravel | Release Force | Operating Force | Switch Function | Circuit | Current Rating (Amps) | Differential Travel | Differential Travel | Actuator Type | Operating Position | Operating Position | Overtravel | Overtravel | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Screw Terminal | 500000 Cycles | 30 V | 1.5 mm | 0.06 in | 500 gf | 1200 gf | On-Mom | SPDT | 5 A | 0.1 mm | 0.004 in | Round (Pin Plunger) | 1.18 " | 30 mm | 3 mm | 0.118 in | Chassis Mount | 125 V | 80 C | -10 °C | IP67 - Dust Tight Waterproof | 10000000 Cycles |
