TJ06 Series

Catalog

TERM BLOCK PLUG 6POS STR 3.81MM

Part	Current - IEC	Termination Style	Pitch [x]	Pitch [x]	Screw Size	Number of Positions	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length [Max]	Wire Strip Length [Min]	Type	Voltage - IEC	Current - UL	Contact Material	Positions Per Level	Mounting Type	Wire Gauge or Range - mm²	Housing Material	Features	Contact Mating Finish	Material Flammability Rating	Voltage - UL	Insulation Height	Insulation Height	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Amphenol Anytek TJ0631020000G	10.5 A	Screw	0.15 in	3.81 mm	M2	6	1	-40 °C	115 °C	28 AWG	16 AWG	7 mm	6 mm	Plug Female Sockets	300 V	10 A	Phosphor Bronze	6	Free Hanging (In-Line)	1.5 mm²	Thermoplastic	Mating Flange	Tin	UL94 V-0	300 V	0.437 in	11.1 mm	Black
Amphenol Anytek TJ0611020000G	10.5 A	Screw	0.138 in	3.5 mm	M2	6	1	-40 °C	115 °C	28 AWG	16 AWG	7 mm	6 mm	Plug Female Sockets	300 V	10 A	Phosphor Bronze	6	Free Hanging (In-Line)	1.5 mm²	Thermoplastic	Mating Flange	Tin	UL94 V-0	300 V	0.437 in	11.1 mm	Black
Amphenol Anytek TJ0671820000G	20 A	Screw	0.197 in	5 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets	300 V	20 A	Copper	6	Free Hanging (In-Line)		Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Tin	UL94 V-0	300 V	0.594 in	15.09 mm	Gray	0.34 mm²	2.5 mm²	0.56 Nm	5 Lb-In
Amphenol Anytek TJ0671500000G		Screw - Rising Cage Clamp	0.197 in	5 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets		12 A	Copper Alloy	6	Free Hanging (In-Line)		Thermoplastic Resin		Tin	UL94 V-0	300 V	0.594 in	15.09 mm	Green			0.56 Nm	5 Lb-In	1 mm˛	2.5 mm˛
Amphenol Anytek TJ0651870000G		Screw	0.2 in	5.08 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets		20 A	Copper	6	Free Hanging (In-Line)		Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Tin	UL94 V-0	300 V	0.594 in	15.09 mm	Gray			0.56 Nm	5 Lb-In
Amphenol Anytek TJ0651040000G	20 A	Screw	0.2 in	5.08 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets	300 V	20 A	Copper	6	Free Hanging (In-Line)		Thermoplastic	Retention Latches (Non-Wire Side) Strain Relief	Tin	UL94 V-0	300 V			Black	0.34 mm²	2.5 mm²	0.56 Nm	5 Lb-In
Amphenol Anytek TJ0671020000G	20 A	Screw	0.197 in	5 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets	300 V	20 A	Copper	6	Free Hanging (In-Line)		Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Tin	UL94 V-0	300 V	0.594 in	15.09 mm	Black	0.34 mm²	2.5 mm²	0.56 Nm	5 Lb-In
Amphenol Anytek TJ0631830000G	10.5 A	Screw	0.15 in	3.81 mm	M2	6	1	-40 °C	115 °C	28 AWG	16 AWG	7 mm	6 mm	Plug Female Sockets	300 V	10 A	Phosphor Bronze	6	Free Hanging (In-Line)	1.5 mm²	Thermoplastic		Tin	UL94 V-0	300 V	0.437 in	11.1 mm	Gray
Amphenol Anytek TJ0651860000G		Screw	0.2 in	5.08 mm	M3	6	1	-40 °C	115 °C	24 AWG	12 AWG	8 mm	7 mm	Plug Female Sockets		20 A	Copper	6	Free Hanging (In-Line)		Thermoplastic		Tin	UL94 V-0	300 V	0.594 in	15.09 mm	Gray			0.56 Nm	5 Lb-In

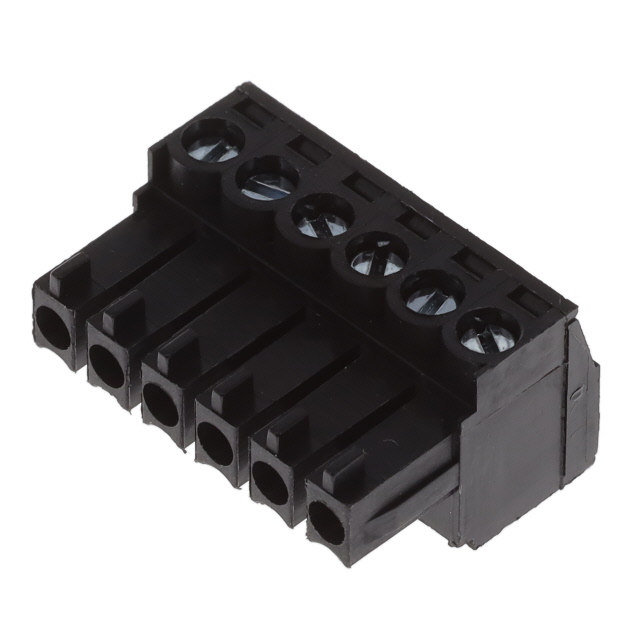

Amphenol Anytek TJ0611030000G	10.5 A	Screw	0.138 in	3.5 mm	M2	6	1	-40 °C	115 °C	28 AWG	16 AWG	7 mm	6 mm	Plug Female Sockets	300 V	10 A	Phosphor Bronze	6	Free Hanging (In-Line)	1.5 mm²	Thermoplastic		Tin	UL94 V-0	300 V	0.437 in	11.1 mm	Black
