320.04 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPST-NO 0.025A 50V
| Part | Switch Travel | Actuator Material | Mechanical Life | Actuator Orientation | Actuator Type | Switch Function | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Height off PCB, Vertical [z] | Outline [x] | Outline [y] | Circuit | Features | Contact Rating @ Voltage | Mounting Type | Operating Force | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

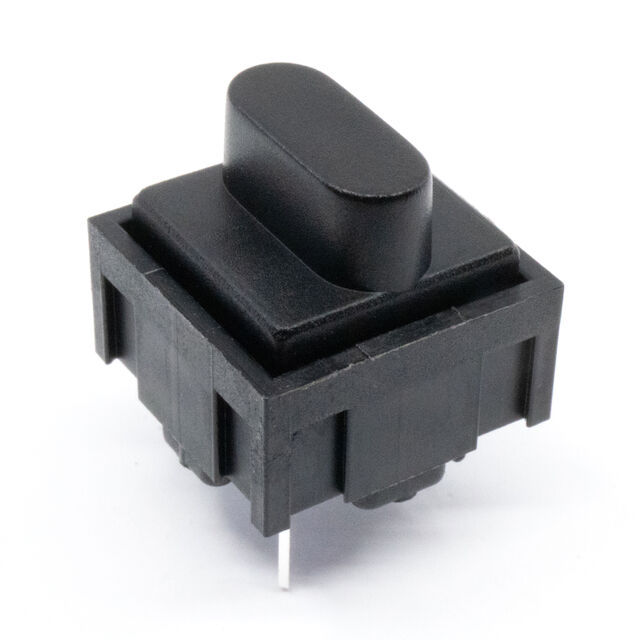

 E-Switch | 0.6 mm | Polycarbonate (PC) | 1000000 Cycles | Top Actuated | Rectangular Button | Off-Mom | Non-Illuminated | -20 ░C | 70 °C | 12.7 mm | 12.4 mm | 12.4 mm | SPST-NO | Black Cap | 0.025 A | Through Hole | 135 gf | PC Pin |
 E-Switch | 0.6 mm | Polycarbonate (PC) | 1000000 Cycles | Top Actuated | Rectangular Button | Off-Mom | Non-Illuminated | -20 ░C | 70 °C | 12.7 mm | 12.4 mm | 12.4 mm | SPST-NO | White Cap | 0.025 A | Through Hole | 135 gf | PC Pin |

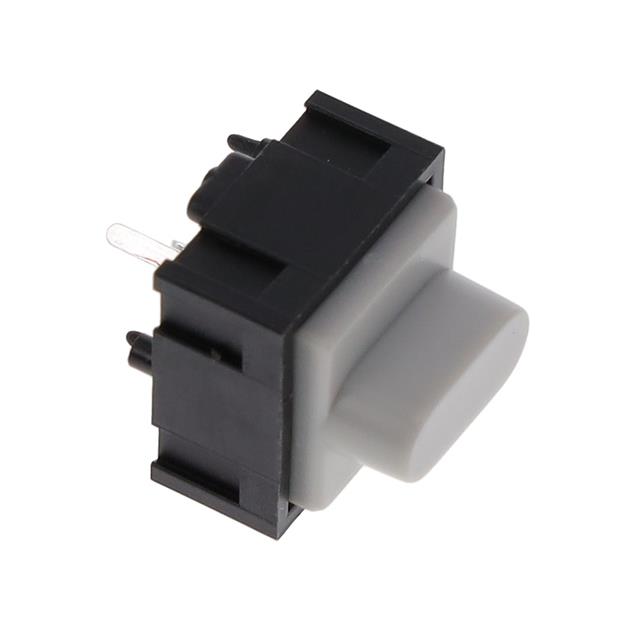

 E-Switch | 0.6 mm | Polycarbonate (PC) | 1000000 Cycles | Top Actuated | Rectangular Button | Off-Mom | Non-Illuminated | -20 ░C | 70 °C | 12.7 mm | 12.4 mm | 12.4 mm | SPST-NO | Gray Cap | 0.025 A | Through Hole | 135 gf | PC Pin |
