TE30A0503 Series

Wall Mount AC Adapters WallPlug/Interchange 5Vdc, 30W, Level VI

Manufacturer: SL POWER / Advanced Energy

Catalog

Wall Mount AC Adapters WallPlug/Interchange 5Vdc, 30W, Level VI

Catalog

Wall Mount AC Adapters WallPlug/Interchange 5Vdc, 30W, Level VI

Part	Weight	Weight	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Region Utilized	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications	Approval Agency	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Cord Length	Cord Length	Input Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy TE30A0503F01	0.551 lb	249.93 g	264 VAC	90 VAC	IEC 320-C14	International	Desktop (Class I)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	CB CE DEMKO UL	100 mW	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	Level VI	57 in	1.45 m	Cord (Sold Separately)	20 W	-20 ░C	40 °C	Positive Center	4 A	5 V
SL POWER / Advanced Energy TE30A0503C01	0.551 lb	249.93 g	264 VAC	90 VAC	NEMA 1-15P	North America	Wall Mount	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	CB CE DEMKO UL	100 mW			96 mm		33.6 mm	55 mm	Level VI	57 in	1.45 m	Fixed Blade	20 W	-20 ░C	40 °C	Positive Center	4 A	5 V	3.78 in	2.17 "	1.32 in
SL POWER / Advanced Energy TE30A0503N01	0.551 lb	249.93 g	264 VAC	90 VAC	IEC 320-C8	International	Desktop (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	CB CE CSA UL	100 mW	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	Level VI	47.2 in	1.2 m	Cord (Sold Separately)	20 W	-20 ░C	40 °C	Positive Center	4 A	5 V

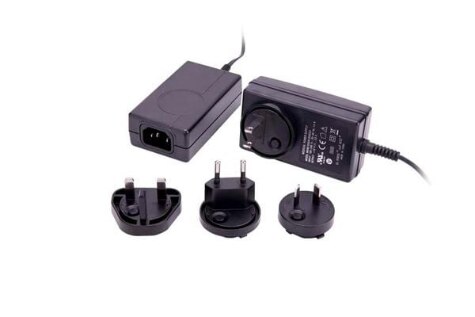

SL POWER / Advanced Energy TE30A0503B01	0.551 lb	249.93 g	264 VAC	90 VAC	NEMA 1-15P Multi-Blade	North America	Wall Mount	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	CB CE DEMKO UL	100 mW			96 mm		33.6 mm	55 mm	Level VI	57 in	1.45 m	Fixed Blade Multi-Blade	20 W	-20 ░C	40 °C	Positive Center	4 A	5 V	3.78 in	2.17 "	1.32 in
SL POWER / Advanced Energy TE30A0503Q01			264 VAC	90 VAC	IEC 320-C18	International	Desktop (Class II)	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	CE	100 mW	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in	Level VI	57 in	1.45 m	Cord (Sold Separately)	20 W	-20 ░C	70 °C	Positive Center	4 A	5 V
