M2013EA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Termination Style	Bushing Thread	Actuator Length [x]	Mounting Type	Voltage Rating - AC

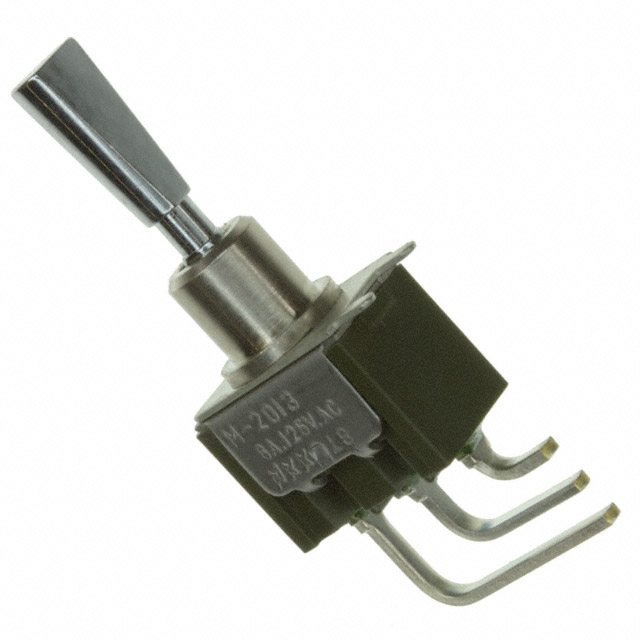

NKK Switches M2013EA2W45	Brass Chrome Plated	25000 Steps	Non-Illuminated	85 °C	-30 ░C	Flatted	SPDT	6.5 mm	Epoxy Sealed Terminals	3 A 6 A	30 V	On-Off-On	PC Pin	Unthreaded	13.21 mm	Right Angle Through Hole Vertical	125 V
NKK Switches M2013EA2G13	Brass Chrome Plated	50000 Cycles	Non-Illuminated	85 °C	-30 ░C	Flatted	SPDT	6.5 mm	Epoxy Sealed Terminals	0.4 VA	28 V	On-Off-On	PC Pin	Unthreaded	13.21 mm	Through Hole	28 V
NKK Switches M2013EA2G40	Brass Chrome Plated	50000 Cycles	Non-Illuminated	85 °C	-30 ░C	Flatted	SPDT	6.5 mm	Epoxy Sealed Terminals	0.4 VA	28 V	On-Off-On	PC Pin	Unthreaded	13.21 mm	Right Angle Through Hole Vertical	28 V
