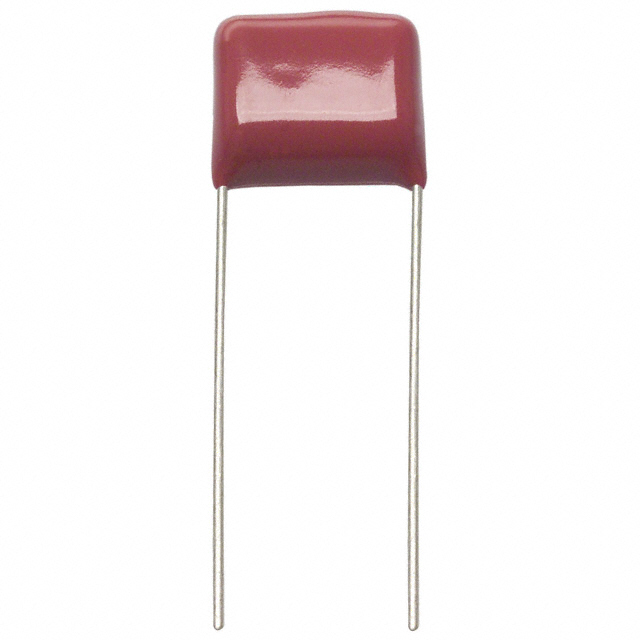

ECW-F4134 Series

Catalog

CAP FILM 0.13UF 3% 400VDC RADIAL

Part	Capacitance	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Applications	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC
Panasonic Industrial Automation Sales ECW-F4134RHL	0.13 µF	Metallized Polypropylene (PP)	0.283 "	15.5 mm	0.61 in	7.2 mm	Radial	High Frequency Switching	Through Hole	7.5 mm	0.295 in	3 %	PC Pins	-40 °C	105 ░C	400 V	16.8 mm	0.661 "
Panasonic Industrial Automation Sales ECW-F4134RJL	0.13 µF	Metallized Polypropylene (PP)	0.283 "	15.5 mm	0.61 in	7.2 mm	Radial	High Frequency Switching	Through Hole	7.5 mm	0.295 in	5 %	PC Pins	-40 °C	105 ░C	400 V	16.8 mm	0.661 "
Panasonic Industrial Automation Sales ECW-F4134JL	0.13 µF	Metallized Polypropylene (PP)	0.283 "	15.5 mm	0.61 in	7.2 mm	Radial	High Frequency Switching	Through Hole	12.5 mm	0.492 in	5 %	PC Pins	-40 °C	105 ░C	400 V			13.3 mm	0.524 in	141 V
