6325 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

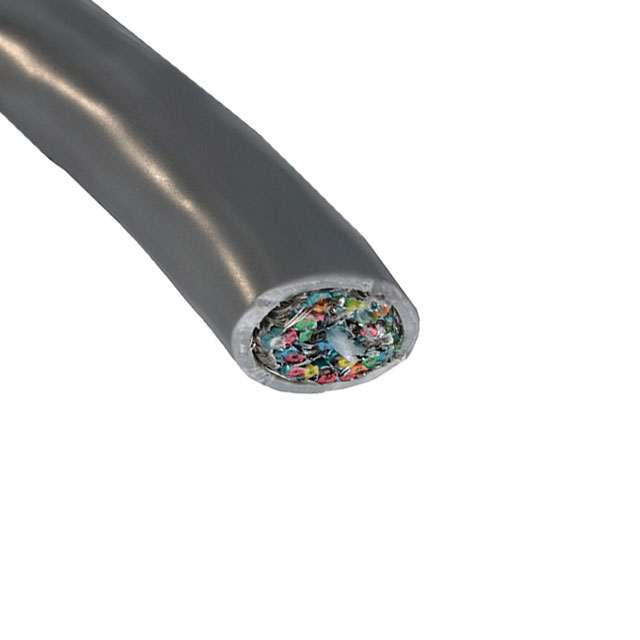

MULTI-PAIR 36COND 24AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Wire Gauge | Length | Length | Conductor Material | Jacket Color | Conductor Insulation | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Ratings | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | 152.4 m | 500 ft | Copper Tinned | Slate | Foam Polypropylene (FPP) | Multi-Pair | Drain Wire | 7 | 32 AWG | 1.6 mm | 0.063 in | 300 VDC | UL Style 2493 | 36 | 18.31 mm | 0.721 in | Braid Foil | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | Copper Tinned | Slate | Foam Polypropylene (FPP) | Multi-Pair | Drain Wire | 7 | 32 AWG | 1.6 mm | 0.063 in | 300 VDC | UL Style 2493 | 36 | 18.31 mm | 0.721 in | Braid Foil | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | 304.8 m | 1000 ft | Copper Tinned | Slate | Foam Polypropylene (FPP) | Multi-Pair | Drain Wire | 7 | 32 AWG | 1.6 mm | 0.063 in | 300 VDC | UL Style 2493 | 36 | 18.31 mm | 0.721 in | Braid Foil |
