10GX52F Series
Manufacturer: Belden Inc.
Beta
⌘K

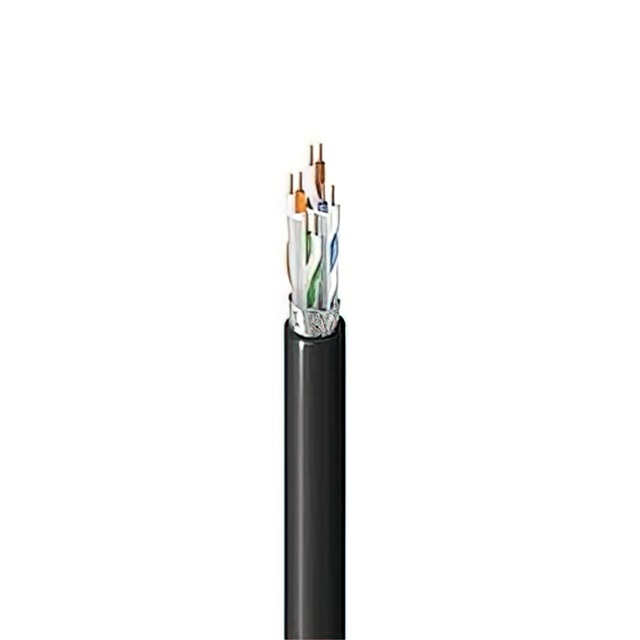

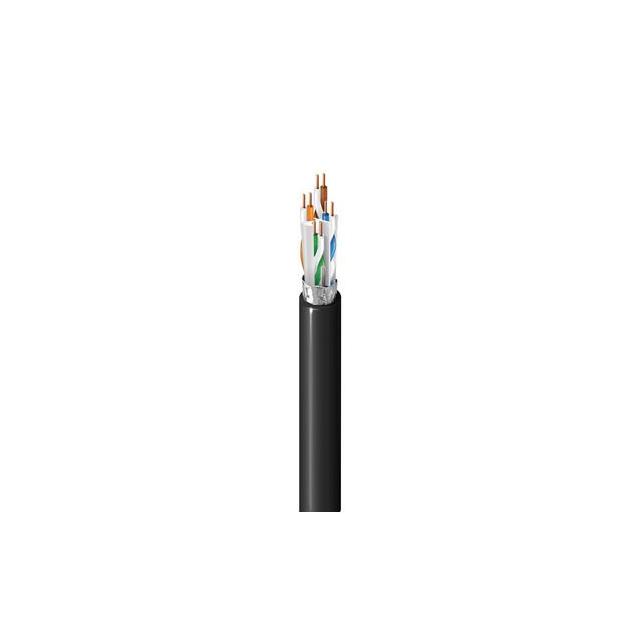

CAT6A 4PR F/UTP CMR REEL
| Part | Shield Coverage | Shield Material | Voltage | Length | Length | Conductor Material | Jacket (Insulation) Material | Conductor Strand | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Shield Type | Usage | Conductor Insulation | Conductor Insulation | Features | Wire Gauge | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 300 VDC | 304.8 m | 1000 ft | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Solid | Red | 6.99 mm | 0.275 in | 8 | Foil | Network | Polyolefin | PO | Drain Wire Rip Cord | 23 AWG | UL Style CMR | Multi-Pair Cat6a |
 Belden Inc. | 100 % | Aluminum Polyester | 300 VDC | 304.8 m | 1000 ft | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Solid | Black | 6.99 mm | 0.275 in | 8 | Foil | Network | Polyolefin | PO | Drain Wire Rip Cord | 23 AWG | UL Style CMR | Multi-Pair Cat6a |
 Belden Inc. | 100 % | Aluminum Polyester | 300 VDC | 304.8 m | 1000 ft | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Solid | Blue | 6.99 mm | 0.275 in | 8 | Foil | Network | Polyolefin | PO | Drain Wire Rip Cord | 23 AWG | UL Style CMR | Multi-Pair Cat6a |
Belden Inc. | 100 % | Aluminum Polyester | 300 VDC | 304.8 m | 1000 ft | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Solid | Gray | 6.99 mm | 0.275 in | 8 | Foil | Network | Polyolefin | PO | Drain Wire Rip Cord | 23 AWG | UL Style CMR | Multi-Pair Cat6a |
