77141 Series

Catalog

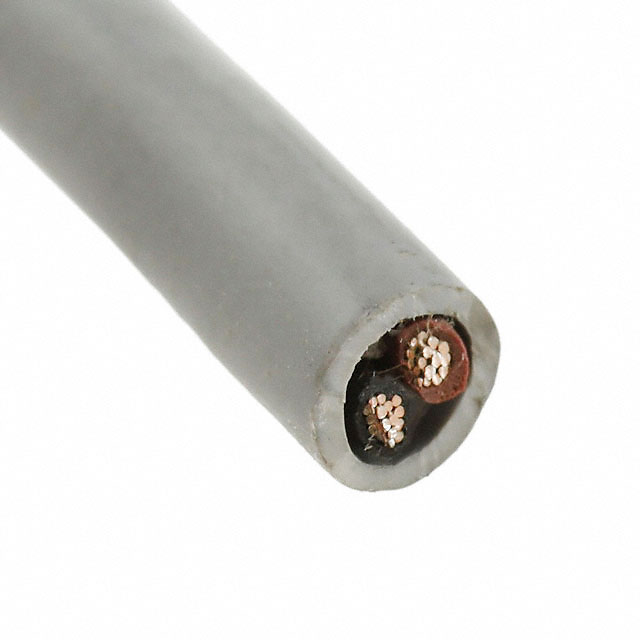

CABLE 2COND 14AWG SHLD

Part	Shield Coverage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Voltage	Wire Gauge	Jacket Color	Conductor Material	Ratings	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Length [x]	Length [x]
ALPHA WIRE 77141 SL001	100 %	Aluminum	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	600 V	14.5 AWG	Slate	Copper Tinned	ISO 10993	Foil	41	30	Biological Compatibility	304.8 m	1000 ft	Polyphenylene Ether Modified (mPPE)	0.813 mm	0.032 in	Multi-Conductor	0.264 in	6.71 mm	2
ALPHA WIRE 77141 SL199	100 %	Aluminum	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	600 V	14.5 AWG	Slate	Copper Tinned	ISO 10993	Foil	41	30	Biological Compatibility			Polyphenylene Ether Modified (mPPE)	0.813 mm	0.032 in	Multi-Conductor	0.264 in	6.71 mm	2
ALPHA WIRE 77141 SL005	100 %	Aluminum	-50 °C	105 ░C	Polyphenylene Ether Modified (mPPE)	600 V	14.5 AWG	Slate	Copper Tinned	ISO 10993	Foil	41	30	Biological Compatibility			Polyphenylene Ether Modified (mPPE)	0.813 mm	0.032 in	Multi-Conductor	0.264 in	6.71 mm	2	100 ft	30.5 m
