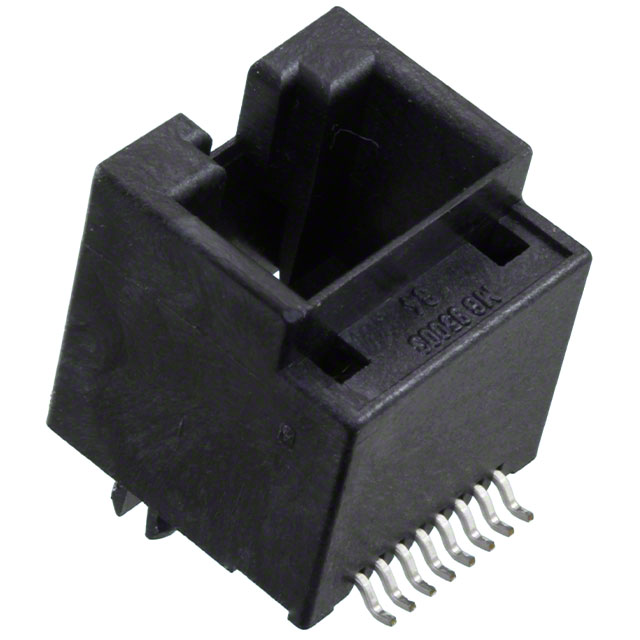

95503 Series
Modular Jack, Vertical, Top Entry, Surface Mount, 6/4, Low Profile, Tube
Manufacturer: Molex
Catalog
Modular Jack, Vertical, Top Entry, Surface Mount, 6/4, Low Profile, Tube
Beta
⌘K
Modular Jack, Vertical, Top Entry, Surface Mount, 6/4, Low Profile, Tube
Modular Jack, Vertical, Top Entry, Surface Mount, 6/4, Low Profile, Tube
Modular Jack, Vertical, Top Entry, Surface Mount, 6/4, Low Profile, Tube
| Part | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Features | Number of Positions/Contacts | Shielding | Mounting Type | Number of Rows | Contact Finish | Ratings | Number of Ports | Contact Material | Termination | Connector Type | Orientation | Tab Direction | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Flash | 85 °C | -40 C | Glass Filled Liquid Crystal Polymer (LCP) | Board Lock | 8p8c (RJ45 Ethernet) | Unshielded | Surface Mount | 1 | Gold | Cat3 | 1 | Copper Alloy | Solder | Jack | Vertical | User Selectable | Does Not Contain LED |
