GLF1100 Series
Manufacturer: GLF Integrated Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LOADSWITCH WITH OUTPUT DISCHARGE
| Part | Rds On (Typ) | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) | Output Ratio | Input Ratio | Package Name | Input Type | Interface | Output Configuration | Operating Temperature (Min) | Operating Temperature (Max) | Number of Outputs | Switch Type | Features | Current - Output (Max) | Voltage - Load (Min) | Voltage - Load (Max) | Mounting Type | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

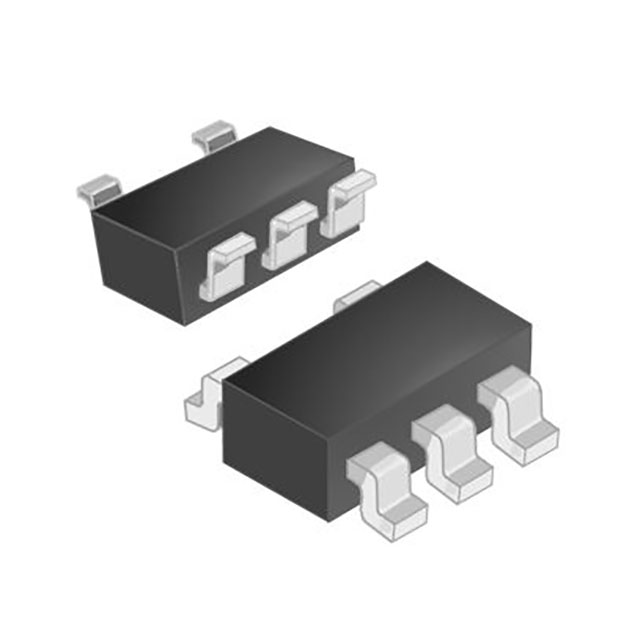

 GLF Integrated Power | 82 mOhm | Not Required | Not Required | 1 | 1 | SOT-23-5 | Non-Inverting | On/Off | High Side | -40 °C | 85 °C | 1 | General Purpose | Load Discharge Slew Rate Controlled | 2 A | 1.1 V | 5.5 V | Surface Mount | P-Channel |
