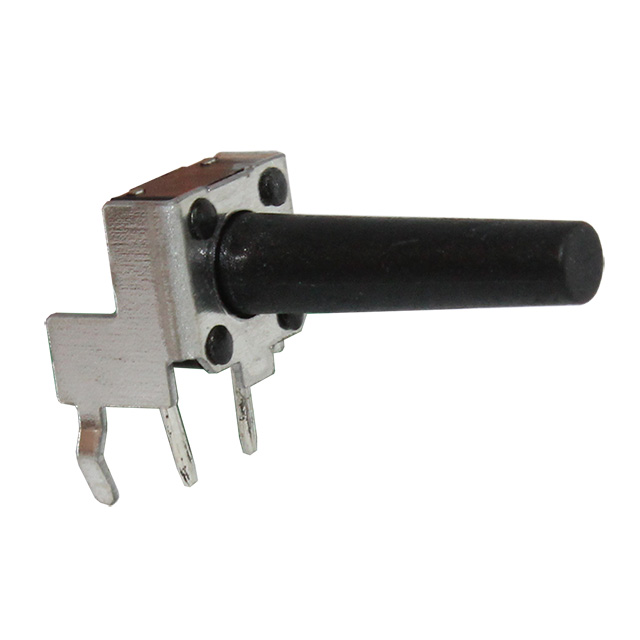

CT1102V15 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Operating Force | Outline [y] | Outline [x] | Termination Style | Actuator Type | Contact Rating @ Voltage | Circuit | Illumination | Switch Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length, Right Angle | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 260 gf | 6.3 mm | 7.5 mm | PC Pin | Plunger for Cap | 0.05 A 50 VDC | SPST-NO | Non-Illuminated | Off-Mom | Right Angle Through Hole | 85 °C | -40 C | 15.85 mm | Side Actuated |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 100 gf | 6.3 mm | 7.5 mm | PC Pin | Plunger for Cap | 0.05 A 50 VDC | SPST-NO | Non-Illuminated | Off-Mom | Right Angle Through Hole | 85 °C | -40 C | 15.85 mm | Side Actuated |
