28K607 Series
Manufacturer: Rosenberger
Beta
⌘K

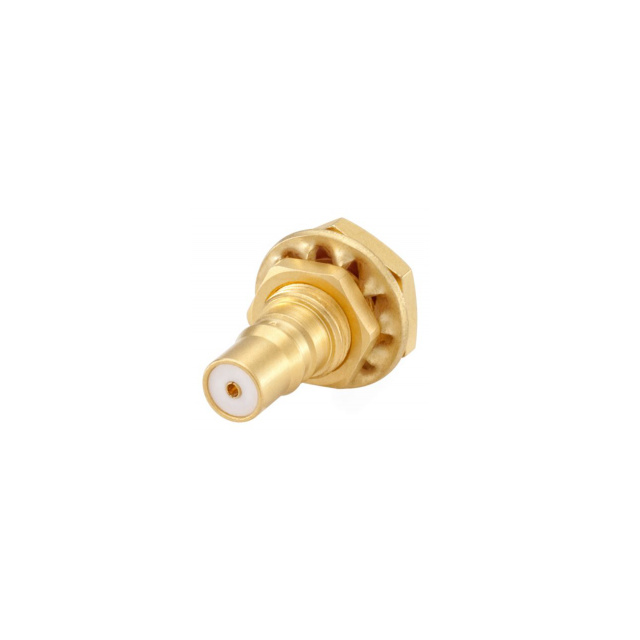

QMA BULKHEAD JACK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Body Material | Housing Color | Mounting Feature | Number of Ports | Contact Termination | Impedance | Mounting Type | Fastening Type | Shield Termination | Center Contact Material | Connector Type | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | Gold | 335 V | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | Bulkhead | 1 | Solder | 50 Ohms | Panel Mount | Snap-On | Solder | Beryllium Copper | Female Socket Jack | 18 GHz | |
 Rosenberger | 85 °C | -40 C | White Bronze | 350 VDC | Gold | Polytetrafluoroethylene (PTFE) | Brass | Silver | Bulkhead | 1 | Solder | 50 Ohms | Panel Mount | Snap-On | Crimp | Beryllium Copper | Female Socket Jack | 18 GHz | RG-316 |
 Rosenberger | 85 °C | -40 C | White Bronze | 350 VDC | Gold | Polytetrafluoroethylene (PTFE) | Brass | Silver | Bulkhead | 1 | Solder | 50 Ohms | Panel Mount | Snap-On | Crimp | Beryllium Copper | Female Socket Jack | 18 GHz | 188A 316 RG-174A |
 Rosenberger | 85 °C | -40 C | Gold | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | Bulkhead | 1 | Solder | 50 Ohms | Panel Mount | Snap-On | Solder | Beryllium Copper | Female Socket Jack | 18 GHz | RG-405 (.085" Semi Rigid) |
