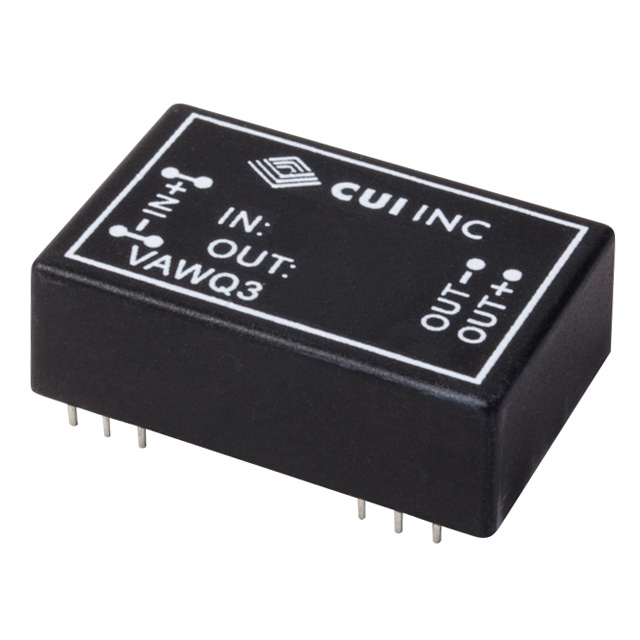

VAWQ3 Series

Manufacturer: CUI Inc.

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE ISOLATED BOARD MOUNT DC-DC CNVRT

Part	Mounting Type	Power (Watts)	Voltage - Input (Min) [Min]	Applications	Features	Voltage - Isolation	Efficiency	Voltage - Output 1	Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
CUI Inc. VAWQ3-Q24-S5H	Through Hole	3 W	9 V	ITE (Commercial)	SCP	3000 V	72 %	5 V	Isolated Module	600 mA	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	1	36 V
CUI Inc. VAWQ3-Q24-S12H	Through Hole	3 W	9 V	ITE (Commercial)	SCP	3000 V	76 %	12 V	Isolated Module	250 mA	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	1	36 V
CUI Inc. VAWQ3-Q48-S3R3H	Through Hole	3 W	18 V	ITE (Commercial)	SCP	3000 V	70 %	3.3 V	Isolated Module	600 mA	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	1	72 V
CUI Inc. VAWQ3-Q24-D15H	Through Hole	3 W	9 V	ITE (Commercial)	SCP	3000 V	72 %	15 V	Isolated Module		71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	2	36 V	-15 V	100 mA	100 mA
CUI Inc. VAWQ3-Q48-D12H	Through Hole	3 W	18 V	ITE (Commercial)	SCP	3000 V	72 %	12 V	Isolated Module		71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	2	72 V	-12 V			125 mA
CUI Inc. VAWQ3-Q24-D5H	Through Hole	3 W	9 V	ITE (Commercial)	SCP	3000 V	70 %	5 V	Isolated Module	0.3 A	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	2	36 V	-5 V
CUI Inc. VAWQ3-Q48-D15H	Through Hole	3 W	18 V	ITE (Commercial)	SCP	3000 V	72 %	15 V	Isolated Module		71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	2	72 V	-15 V	100 mA	100 mA
CUI Inc. VAWQ3-Q48-D5H	Through Hole	3 W	18 V	ITE (Commercial)	SCP	3000 V	71 %	5 V	Isolated Module	0.3 A	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	2	72 V	-5 V
CUI Inc. VAWQ3-Q24-S15H	Through Hole	3 W	9 V	ITE (Commercial)	SCP	3000 V	76 %	15 V	Isolated Module	200 mA	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	1	36 V
CUI Inc. VAWQ3-Q48-S5H	Through Hole	3 W	18 V	ITE (Commercial)	SCP	3000 V	72 %	5 V	Isolated Module	600 mA	71 °C	-25 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	24-DIP Module 15 Leads	1	72 V
