C-SERIES Series

Silicon Photomultiplier Sensors, C-Series (SiPM)

Catalog

Silicon Photomultiplier Sensors, C-Series (SiPM)

Part	Utilized IC / Part	Interface	Sensor Type	Supplied Contents	Wavelength	Active Area	Mounting Type	Spectral Range [Max]	Spectral Range [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Color - Enhanced	Response Time	Current - Dark (Typ)	Package / Case
ON Semiconductor MICROFC-SMA-30050-GEVB	MicroFC-30050	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)

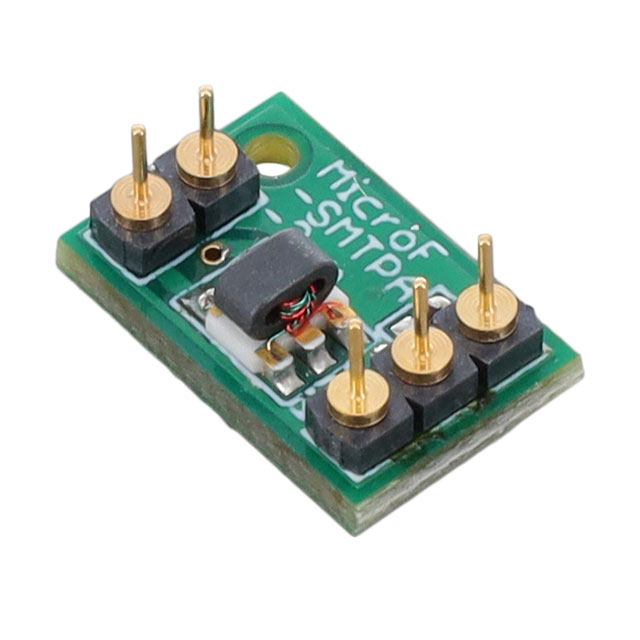

ON Semiconductor MICROFC-SMTPA-30020-GEVB	MicroFC-30020	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)
ON Semiconductor MICROFC-SMA-30020-GEVB	MicroFC-30020	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)
ON Semiconductor MICROFC-10035-SMT-TR1					420 nm	1 mm˛	Surface Mount	950 nm	300 nm	24.7 V	85 °C	-40 °C	Avalanche	Blue	300 ps	15 nA	4-SMD No Lead

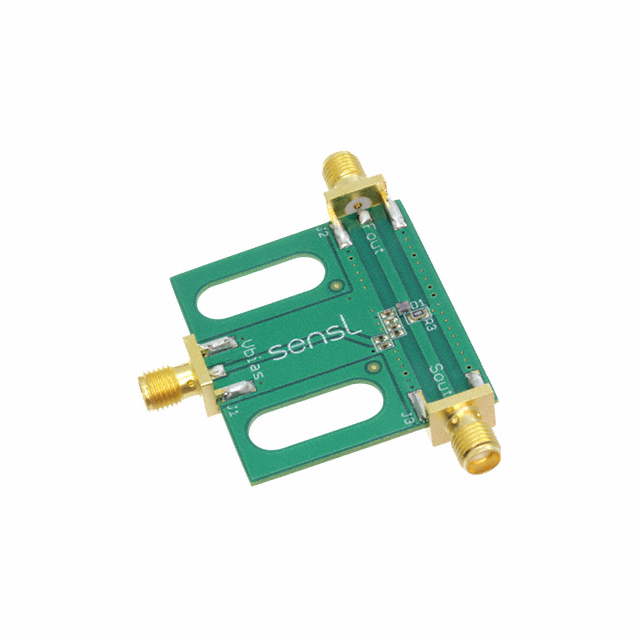

ON Semiconductor MICROFC-SMA-10035-GEVB	MicroFC-10035	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)
ON Semiconductor MICROFC-SMTPA-60035-GEVB	MicroFC-60035	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)
ON Semiconductor MICROFC-SMA-10010-GEVB	MicroFC-10010	Analog	Light Silicon Photomultiplier (SiPM)	Board(s)
ON Semiconductor MICROFC-60035-SMT-TR1					420 nm	36 mm˛	Surface Mount	950 nm	300 nm	24.7 V	85 °C	-40 °C	Avalanche	Blue	1 ns	618 nA	4-SMD No Lead

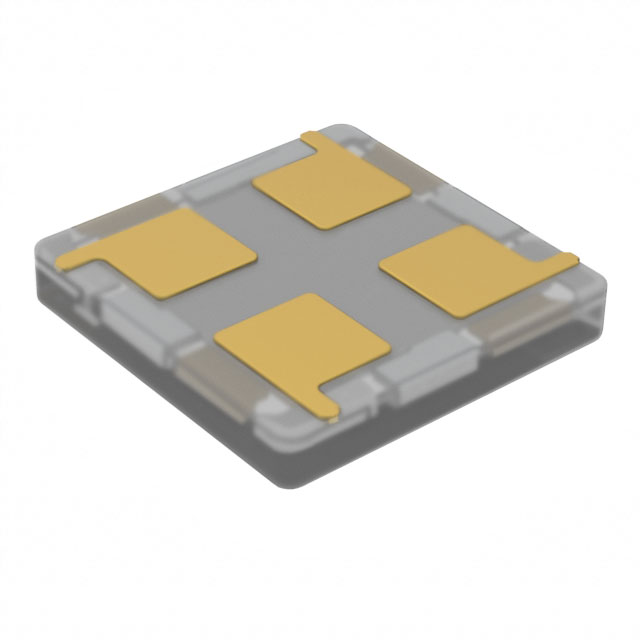

ON Semiconductor MICROFC-30050-SMT-TR1					420 nm	9 mm²	Surface Mount	950 nm	300 nm	24.7 V	85 °C	-40 °C	Avalanche	Blue	600 ps	319 nA	4-SMD No Lead
ON Semiconductor MICROFC-10035-SMT-TR					420 nm	1 mm˛	Surface Mount	950 nm	300 nm	24.7 V	85 °C	-40 °C	Avalanche	Blue	300 ps	15 nA	4-SMD No Lead

Catalog

Silicon Photomultiplier Sensors, C-Series (SiPM)

Key Features

• >40% PDE at 420 nm, and extended sensitivity to 300 nm for improved UV sensitivity

• Ultra-low dark count rates of 30 kHz/mm2

• Exceptional breakdown voltage uniformity of ±250 mV over all C-Series products

• Temperature stability of 21.5 mV/°C

• Ultra-fast rise times of 300 ps with 600 ps pulse width from a unique ‘fast output’ terminal

• Bias voltage of <30 V

• 1 mm, 3 mm, and 6 mm sensor sizes

Description

The C-Series silicon photomultiplier (SiPM) sensors feature industry-leading low dark count rates of 30 kHz/mm2, in combination with exceptional breakdown voltage uniformity of ±250 mV. The high photon detection efficiency (PDE) extends far into the blue part of the spectrum using a high-volume, CMOS process.
