770170 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

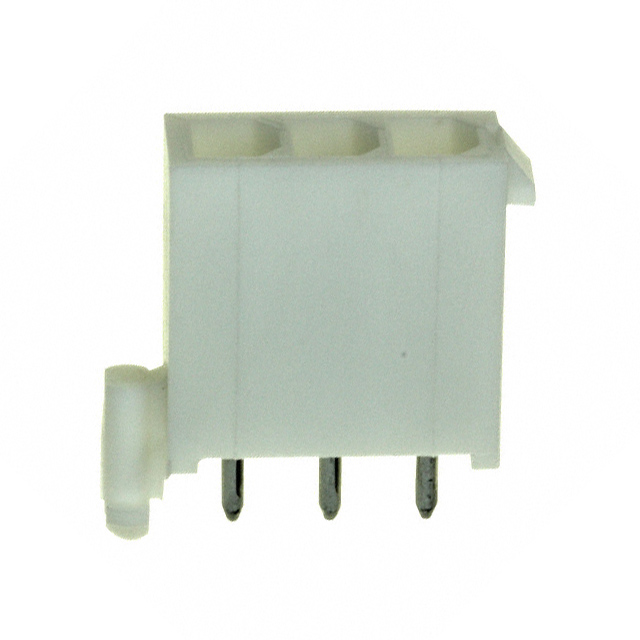

CONN HEADER VERT 3POS 4.14MM

Part	Applications	Contact Finish Thickness - Post	Insulation Material	Contact Material	Insulation Height	Insulation Height	Mounting Type	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Features	Fastening Type	Contact Shape	Material Flammability Rating	Termination	Contact Finish - Post	Shrouding	Style	Connector Type	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Finish - Mating
TE Connectivity AMP Connectors 5-770170-0	General Purpose	3.81 Ám	Nylon Polyamide (PA)	Brass	13.5 mm	0.531 in	Through Hole	1	Black	150 Áin	3.81 Ám	All	85 °C	-20 ░C	0.163 in	4.14 mm	Varies by Wire Gauge	Male Pin	Board Lock	Locking Ramp	Circular	UL94 V-0	Solder	Tin	Shrouded - 4 Wall	Board to Cable/Wire	Header	4.45 mm	0.175 in	600 VAC
TE Connectivity AMP Connectors 770170-1	General Purpose	3.81 Ám	Nylon Polyamide (PA)	Brass	13.5 mm	0.531 in	Through Hole	1	White	150 Áin	3.81 Ám	All	85 °C	-20 ░C	0.163 in	4.14 mm	Varies by Wire Gauge	Male Pin	Board Lock	Locking Ramp	Circular	UL94 V-0	Solder	Tin-Lead	Shrouded - 4 Wall	Board to Cable/Wire	Header	4.45 mm	0.175 in	600 VAC	Tin-Lead
TE Connectivity AMP Connectors 770170-2	General Purpose	3.81 Ám	Nylon Polyamide (PA)	Brass	13.5 mm	0.531 in	Through Hole	1	White	30 Áin	0.76 Ám	All	105 ░C	-20 ░C	0.163 in	4.14 mm	Varies by Wire Gauge	Male Pin	Board Lock	Locking Ramp	Circular	UL94 V-0	Solder	Tin-Lead	Shrouded - 4 Wall	Board to Cable/Wire	Header	4.45 mm	0.175 in	600 VAC	Gold
