002256 Series

Manufacturer: Molex

Catalog

CONN HOUSING RCP 10 POS 2.54MM CRIMP ST CABLE MOUNT BLACK SL™ BAG

Part	Note	Pitch	Pitch	Mounting Type	Row Spacing	Row Spacing	Connector Type	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination	Color	Number of Rows [custom]	Fastening Type	Features
Molex 0022566107	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	10	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2

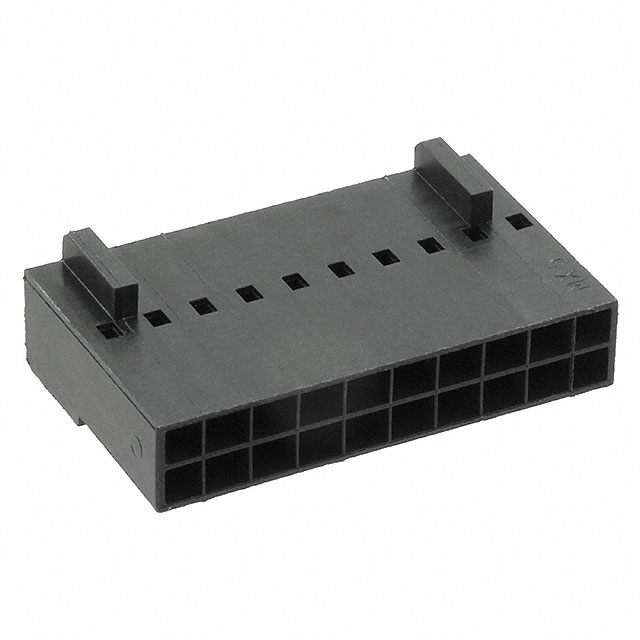

Molex 0022566207	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	20	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022566407	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	40	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022566507	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	50	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2

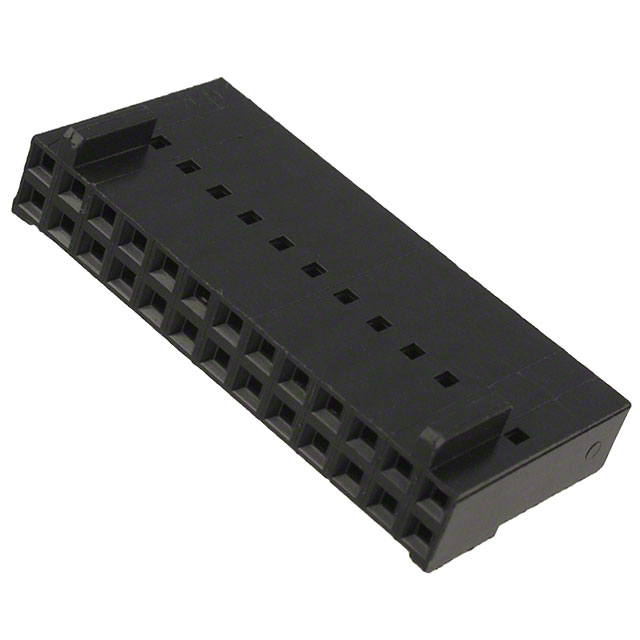

Molex 0022566267	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	26	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022566127	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	12	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022566247	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	24	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022566287	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	28	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2

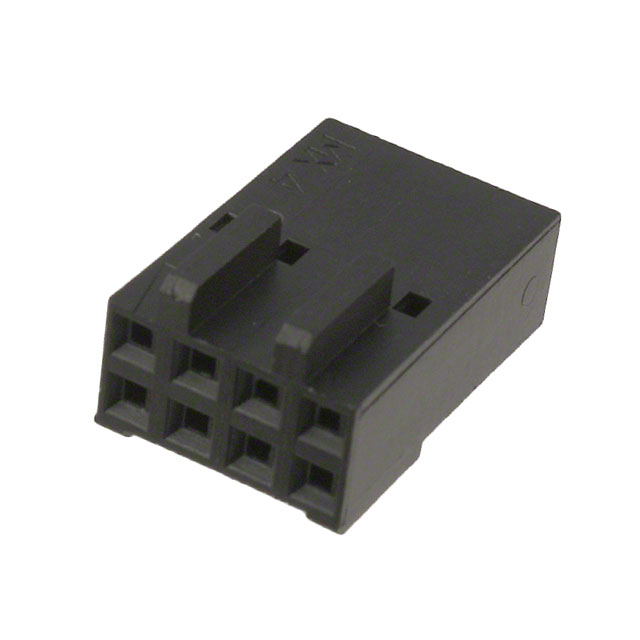

Molex 0022566087	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	8	Female Socket	-40 C	105 ░C	Polyester Glass Filled	Crimp	Black	2
Molex 0022568087	Contacts Not Included	0.1 "	2.54 mm	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	8	Female Socket			Polyester Glass Filled	Crimp		2	Locking Ramp	Polarizing Key
