BD00GA5 Series

Catalog

500MA VARIABLE OUTPUT, HIGH-ACCURACY LDO REGULATOR

Part	Voltage - Output (Max) [Max]	Number of Regulators	Protection Features	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Current - Output	Current - Supply (Max) [Max]	Voltage Dropout (Max)	Output Configuration	Control Features	Output Type	Supplier Device Package	Voltage - Input (Max) [Max]	Mounting Type	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Voltage Dropout (Max) [Max]	Grade

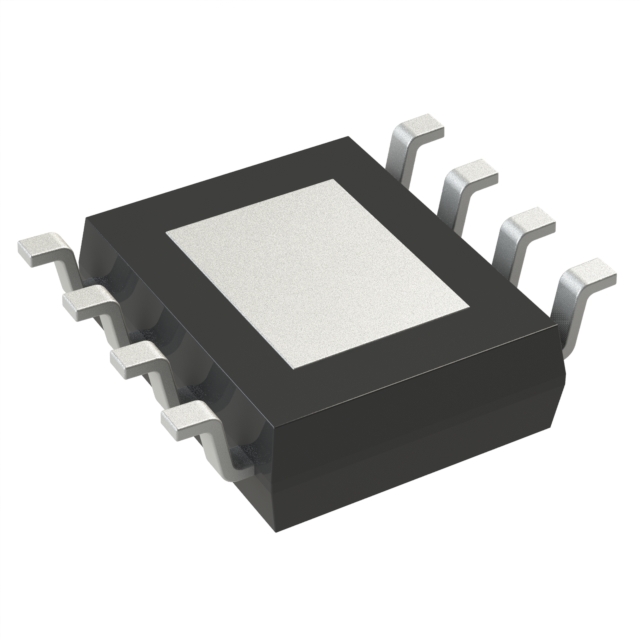

Rohm Semiconductor BD00GA5WEFJ-E2	13 V	1	Over Current Over Temperature Soft Start	1.5 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	500 mA	900 µA	0.9 V	Positive	Enable	Adjustable	8-HTSOP-J	14 V	Surface Mount	0.6 mA	85 °C	-25 °C
Rohm Semiconductor BD00GA5MEFJ-ME2	13 V	1	Over Current Over Temperature Soft Start	1.5 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	500 mA	1.2 mA		Positive	Enable	Adjustable	8-HTSOP-J	14 V	Surface Mount	0.6 mA	105 ░C	-40 C	AEC-Q100	1.2 V	Automotive
Rohm Semiconductor BD00GA5MEFJ-LBH2	13 V	1	Over Current Over Temperature Short Circuit	1.5 V	8-SOIC Exposed Pad	3.9 mm	0.154 in	500 mA			Positive	Enable Soft Start	Adjustable	8-HTSOP-J	14 V	Surface Mount	1.2 mA	105 ░C	-40 C		1.2 V
