FA-118T Series

Manufacturer: EPSON

Catalog

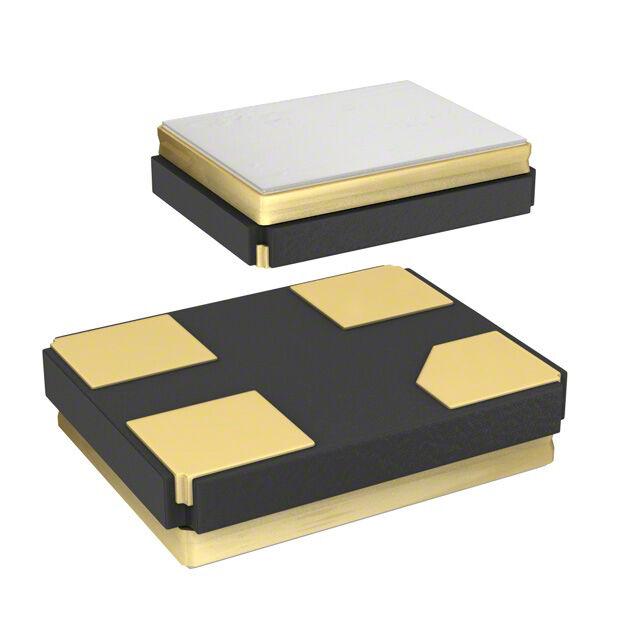

FA-118T 24.00M-70AANNGB0REB: XTL

Part	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Mode	Frequency	Frequency Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Frequency Stability	Type
EPSON FA-118T 24.00M-70AANNGB0REB	1.2	1.6	4-SMD	Fundamental	24 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	200 Ohm	4-SMD No Lead	85 °C	-40 C	7 pF	20 ppm	MHz Crystal
EPSON FA-118T 38.40M-80AAAAF60RE5	1.2	1.6	4-SMD	Fundamental	38.4 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	60 Ohms	4-SMD No Lead	85 °C	-20 ░C	8 pF	10 ppm	MHz Crystal
EPSON FA-118T 32.00M-60AAAAU50REB	1.2	1.6	4-SMD	Fundamental	32 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	50 Ohms 100 Ohms	4-SMD No Lead			6 pF	10 ppm	MHz Crystal
EPSON FA-118T 30.0000MA20Z-AJ	1.2	1.6	4-SMD	Fundamental	30 MHz	20 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	200 Ohm	4-SMD No Lead			8 pF	20 ppm	MHz Crystal
EPSON FA-118T 32.00M-C0AANNHA0REB	1.2	1.6	4-SMD	Fundamental	32 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	100 Ohms	4-SMD No Lead	105 ░C	-40 C	12 pF	20 ppm	MHz Crystal
EPSON FA-118T 48.00M-60YYYYU80REB	1.2	1.6	4-SMD	Fundamental	48 MHz	30 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	80 Ohm	4-SMD No Lead			6 pF	30 ppm	MHz Crystal
EPSON FA-118T 24.00M-C0AAAAU60RE3	1.2	1.6	4-SMD	Fundamental	24 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	60 Ohms 200 Ohm	4-SMD No Lead			12 pF	10 ppm	MHz Crystal
EPSON FA-118T 32.00M-60NNNNGA0REB	1.2	1.6	4-SMD	Fundamental	32 MHz	20 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	100 Ohms	4-SMD No Lead	85 °C	-40 C	6 pF	20 ppm	MHz Crystal
EPSON FA-118T 48.0000MF20X-AJ	1.2	1.6	4-SMD	Fundamental	48 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	80 Ohm	4-SMD No Lead	85 °C	-40 C	8 pF	20 ppm	MHz Crystal
EPSON FA-118T 32.00M-60AAAAN60REB	1.2	1.6	4-SMD	Fundamental	32 MHz	10 ppm	Surface Mount	0.35 mm	0.014 "	1.6 mm	1.2 mm	0.047 in	0.063 "	60 Ohms	4-SMD No Lead	85 °C	-30 ░C	6 pF	10 ppm	MHz Crystal
