84281 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Material Flammability Rating	Style	Features	Number of Positions	Termination	Contact Finish - Mating	Shrouding	Fastening Type	Number of Rows [custom]	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Row Spacing	Row Spacing	Cable Termination	Pitch	Pitch	Wire Type	Color

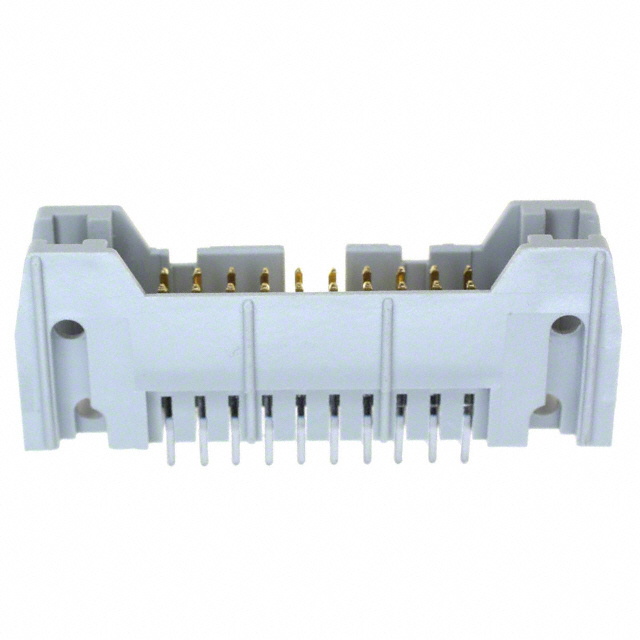

Amphenol ICC (Commercial Products) 8428162030035	UL94 V-0	Board to Cable/Wire	Keying Slot	20	Solder	Gold	Shrouded - 2 Wall	Push-Pull	2	Header	0.1 in	2.54 mm	-55 C	105 ░C	17.52 mm	0.69 in	0.109 in	2.76 mm	Through Hole	0.1 "	2.54 mm	Square	Phosphor Bronze	Male Pin	0.76 Ám	30 Áin	0.24 in	6.1 mm	Gray	All
Amphenol ICC (Commercial Products) 8428162630035	UL94 V-0	Board to Cable/Wire	Keying Slot	26	Solder	Gold	Shrouded - 2 Wall	Push-Pull	2	Header	0.1 in	2.54 mm	-55 C	105 ░C	17.52 mm	0.69 in	0.109 in	2.76 mm	Through Hole	0.1 "	2.54 mm	Square	Phosphor Bronze	Male Pin	0.76 Ám	30 Áin	0.24 in	6.1 mm	Gray	All
Amphenol ICC (Commercial Products) 8428122622134			Feed Through Strain Relief	26					2	Receptacle									Free Hanging (In-Line)					Female Socket							30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable	Gray

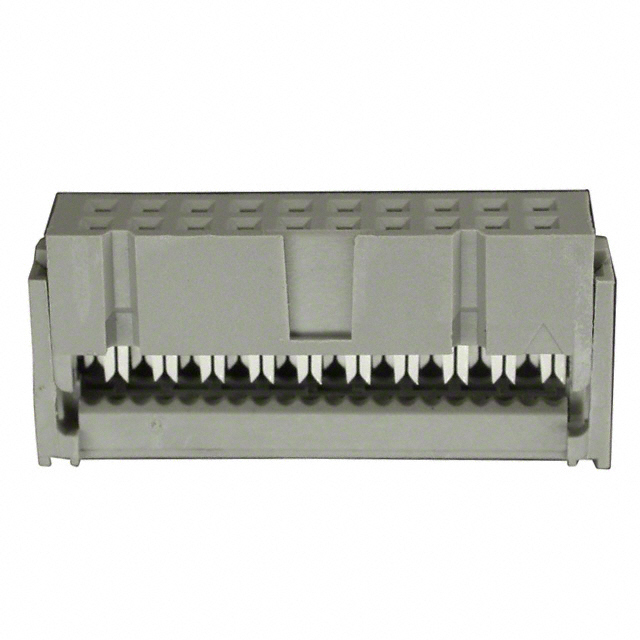

Amphenol ICC (Commercial Products) 8428122022134			Feed Through Strain Relief	20					2	Receptacle									Free Hanging (In-Line)					Female Socket							30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable	Gray

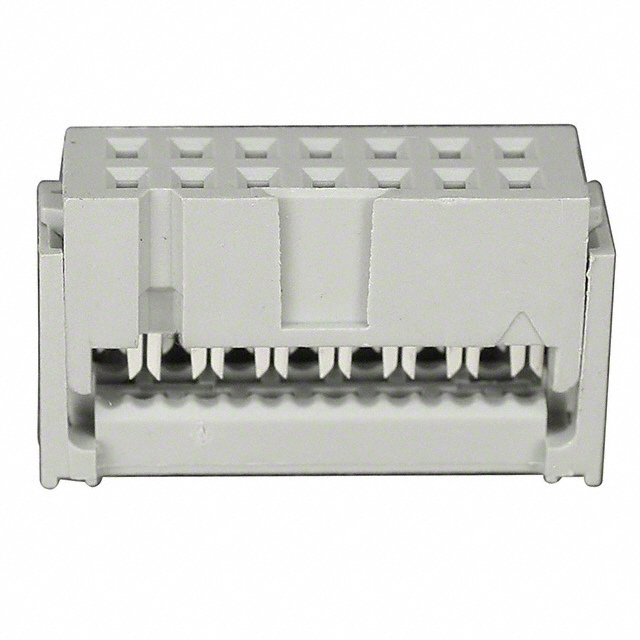

Amphenol ICC (Commercial Products) 8428121422134			Feed Through Strain Relief	14					2	Receptacle									Free Hanging (In-Line)					Female Socket							30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable	Gray
Amphenol ICC (Commercial Products) 8428126422134			Feed Through Polarizing Key	64					2	Receptacle									Free Hanging (In-Line)					Female Socket							30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable	Gray
Amphenol ICC (Commercial Products) 8428125022134			Feed Through Polarizing Key	50					2	Receptacle									Free Hanging (In-Line)					Female Socket							30 Áin	0.76 Ám	Gold	2.54 mm	0.1 "	IDC	0.1 "	2.54 mm	Ribbon Cable	Gray
