RMX-8000 Series
Manufacturer: RF Industries
Beta
⌘K

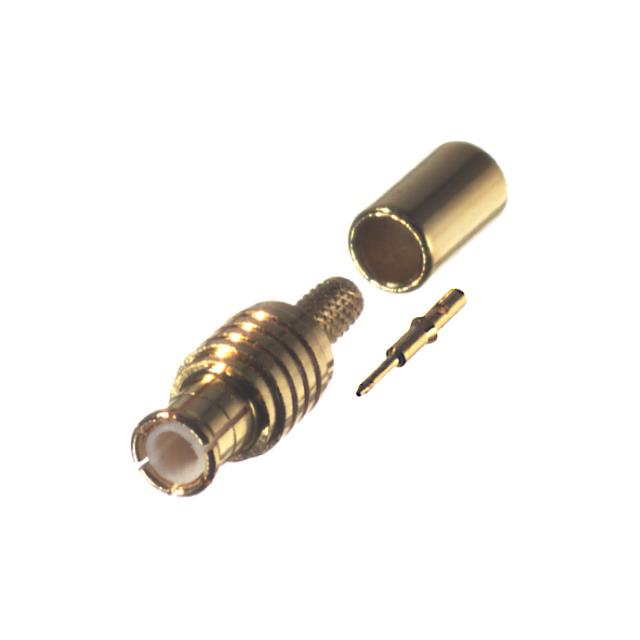

MCX MALE CRIMP; 50 OHMS
| Part | Connector Type | Connector Style | Body Material | Housing Color | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Frequency - Max [Max] | Contact Termination | Body Finish | Shield Termination | Number of Ports | Voltage Rating | Center Contact Plating | Impedance | Mounting Type | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Male Pin Plug | MCX | Beryllium Copper Brass | Gold | Snap-On | -65 ░C | 165 °C | Brass | 6000 MHz | Solder | Gold | Crimp | 1 | 335 V | Gold | 50 Ohms | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) |
