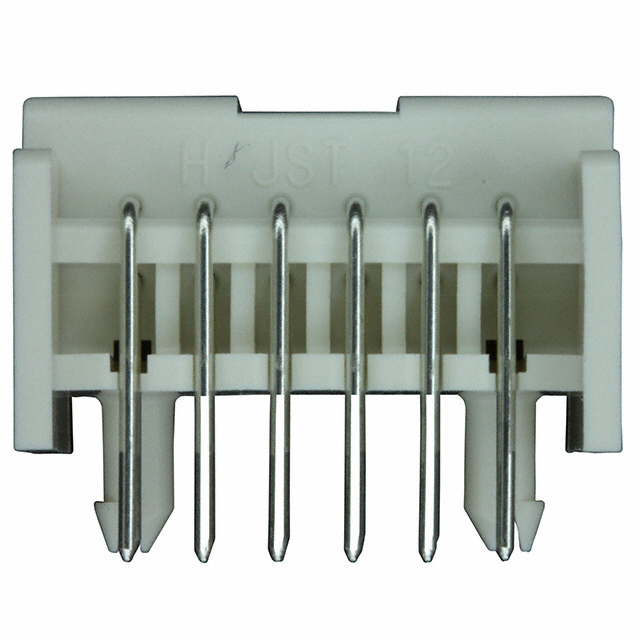

S12B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 12POS 2.5MM
| Part | Insulation Color | Number of Positions Loaded | Shrouding | Fastening Type | Material Flammability Rating | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Insulation Height | Insulation Height | Contact Type | Mounting Type | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Number of Rows [custom] | Contact Shape | Connector Type | Contact Material | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | All | Shrouded - 4 Wall | Locking Ramp | UL94 V-0 | Tin | 2.5 mm | 0.098 in | Board to Cable/Wire | 12.1 mm | 0.476 " | Male Pin | Right Angle Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.134 " | 3.4 mm | 2.5 mm | 0.098 in | 85 °C | -25 °C | 12 | Solder | 2 | Circular | Header | Copper Alloy | 250 V | 3 A |
