TD2-1F Series
Manufacturer: Switch Components
Beta
⌘K

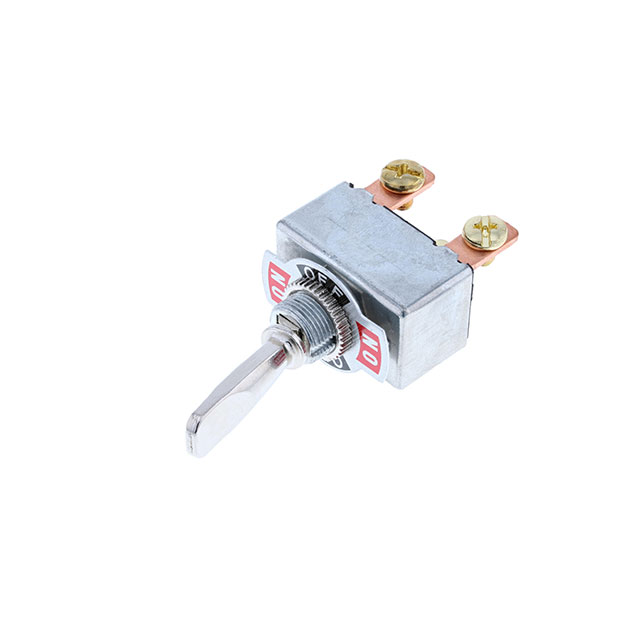

SWITCH TOGGLE SPDT 50A 12V
| Part | Actuator Material | Electrical Life (Cycles) | Panel Cutout Diameter | Panel Cutout Shape | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - DC | Bushing Thread | Illumination | Actuator Length | Actuator Type | Switch Function | Termination Style | Mounting Type | Current Rating | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | Nickel Plated Zinc Alloy | 6000 Cycles | 12.2 mm | Circular | 85 °C | -20 °C | 12 V | 15/32-32 | Non-Illuminated | 28.4 mm | Flatted | On-Off-On | Screw Terminal | Panel Mount | 50 A | SPDT |
