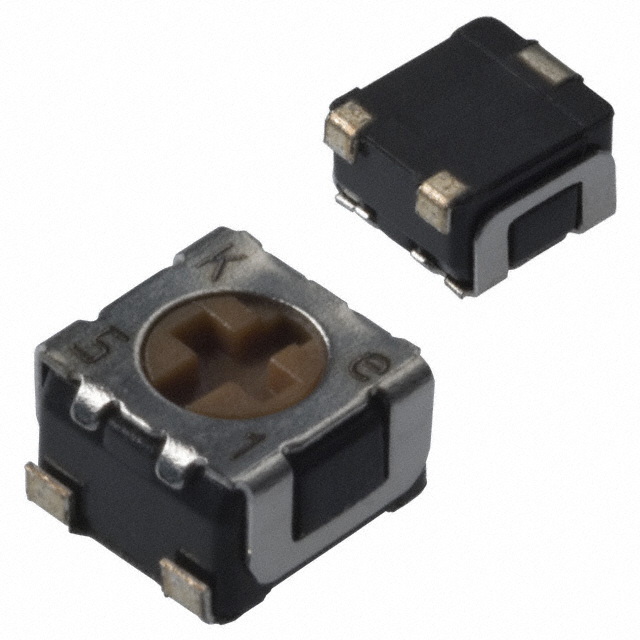

ST32ETA Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER POT, CERMET, 20K, 1TURN, SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Number of Turns	Tolerance	Resistance	Resistive Material	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Termination Style
Nidec Components Corporation ST-32ETA203	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	20 kOhms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA104	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	100 kOhms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA103	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	10000 Ohms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA500	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	50 Ohms	Cermet	Surface Mount	250 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA201	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	200 Ohms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA100	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	10 Ohms	Cermet	Surface Mount	250 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA105	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	1 MOhms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA102	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	1000 Ohms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA502	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	5 kOhms	Cermet	Surface Mount	100 ppm/°C	0.125 W	0.125 W	J Lead
Nidec Components Corporation ST-32ETA200	3.4 mm	3.4 mm	0.134 in	0.134 in	Top Adjustment	1	20 %	20 Ohms	Cermet	Surface Mount	250 ppm/°C	0.125 W	0.125 W	J Lead
