86125CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

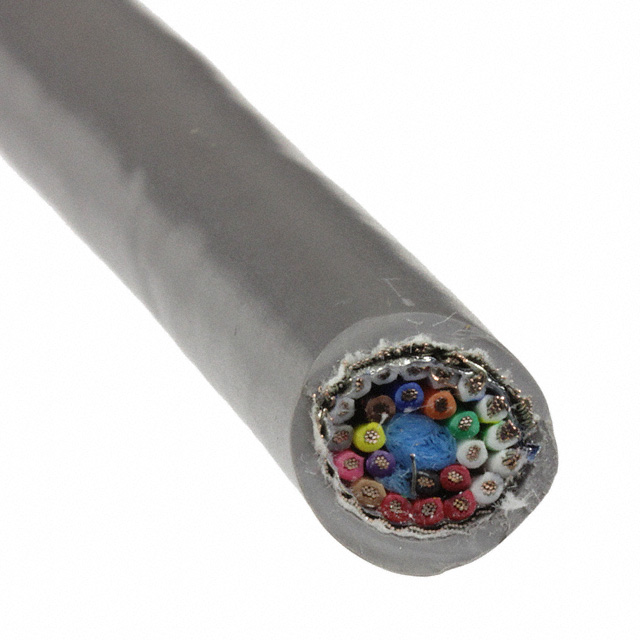

MULTICONDUCTOR CABLE, XTRA GUARD FLEX, SHIELDED, 25 CONDUCTOR, 26 AWG, 0.14 MM², 1000 FT, 304.8 M
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Insulation | Conductor Strand | Number of Conductors | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Shield Material | Shield Coverage | Ratings | Length | Length | Voltage | Features | Jacket Color | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.04 in | 1.016 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 7 Strands 34 AWG | 25 | 26 AWG | 0.355 " | 9.02 mm | Multi-Conductor | Braid Foil | Aluminum Copper Tinned | 90 % 100 % | ISO 10993 UL Style 2661 | 1000 ft | 304.8 m | 300 V | Biological Compatibility Drain Wire | Slate | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | 0.04 in | 1.016 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | 7 Strands 34 AWG | 25 | 26 AWG | 0.355 " | 9.02 mm | Multi-Conductor | Braid Foil | Aluminum Copper Tinned | 90 % 100 % | ISO 10993 UL Style 2661 | 300 V | Biological Compatibility Drain Wire | Slate | Poly-Vinyl Chloride (PVC) | 500 ' | 152.4 m |
