EZ6301 Series
Manufacturer: Altera
Beta
⌘K

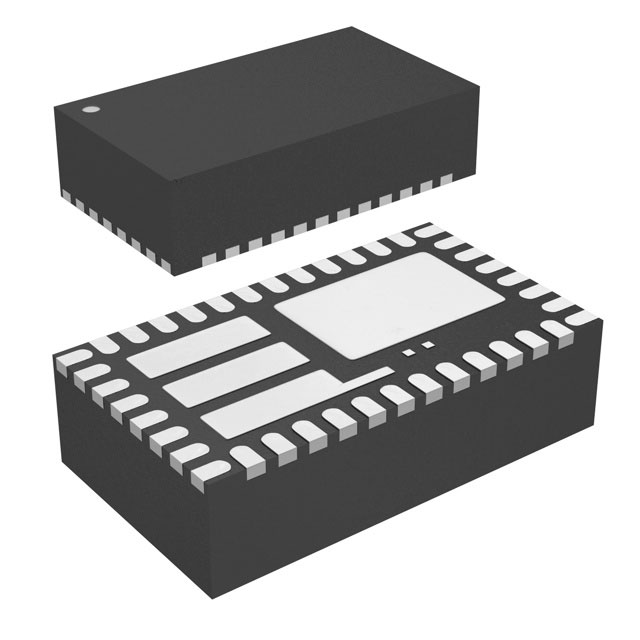

BUCK CONVERTER WITH LDO 2.7V TO 6.6V 40-PIN QFN EP T/R
| Part | Voltage/Current - Output 2 [Min] | Voltage/Current - Output 2 | Voltage/Current - Output 2 [Max] | Package / Case | Voltage/Current - Output 1 [Min] | Voltage/Current - Output 1 | Voltage/Current - Output 1 [Max] | Number of Outputs | Frequency - Switching | w/LED Driver | Operating Temperature [Max] | Operating Temperature [Min] | Voltage/Current - Output 3 [Min] | Voltage/Current - Output 3 [Max] | Voltage/Current - Output 3 | Mounting Type | w/Sequencer | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | w/Supervisor | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | 0.9 V | 300 mA | 3.3 V | 40-FQFN Exposed Pad | 0.6 V | 1.5 A | 3.3 V | 3 | 2.5 MHz | 85 C | -40 ¯C | 0.9 V | 3.3 V | 300 mA | Surface Mount | 40-QFN (7x4) | 3.6 V | 1.6 V | Linear (LDO) (2) Step-Down (Buck) (1) | |||
Altera | 0.9 V | 300 mA | 3.3 V | 40-FQFN Exposed Pad | 0.6 V | 1.5 A | 3.3 V | 3 | 2.5 MHz | 85 C | -40 ¯C | 0.9 V | 3.3 V | 300 mA | Surface Mount | 40-QFN (7x4) | 3.6 V | 1.6 V | Linear (LDO) (2) Step-Down (Buck) (1) |
