WP3A8 Series

Catalog

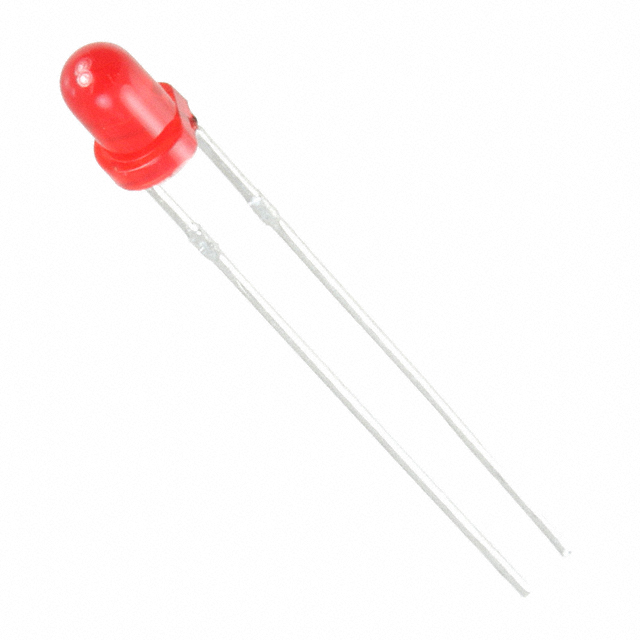

LED RED DIFFUSED T-1 T/H

Part	Package / Case	Current - Test	Wavelength - Peak	Size / Dimension [diameter]	Height (Max) [Max] [z]	Lens Color	Viewing Angle	Lens Transparency	Lens Size	Lens Size	Lens Style	Wavelength - Dominant	Supplier Device Package	Mounting Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Color	Configuration
Kingbright WP3A8HD	Radial	20 mA	700 nm	3 mm	5 mm	Red	50 °	Diffused	3 mm	T-1	Round with Domed Top	635 nm	T-1	Through Hole	2.5 mcd	2.25 V	Red	Standard
Kingbright WP3A8ID	Radial	20 mA	627 nm	3 mm	5 mm	Red	50 °	Diffused	3 mm	T-1	Round with Domed Top	625 nm	T-1	Through Hole	25 mcd	2 V	Red	Standard
Kingbright WP3A8GD	Radial	20 mA	565 nm	3 mm	5 mm	Green	50 °	Diffused	3 mm	T-1	Round with Domed Top	568 nm	T-1	Through Hole	20 mcd	2.2 V	Green	Standard

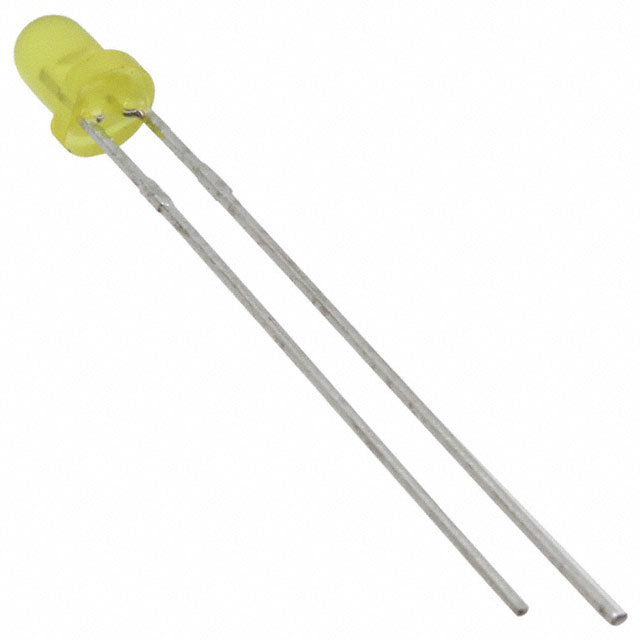

Kingbright WP3A8YD	Radial	20 mA	590 nm	3 mm	5 mm	Yellow	50 °	Diffused	3 mm	T-1	Round with Domed Top	588 nm	T-1	Through Hole	15 mcd	2.1 V	Yellow	Standard
