842-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 16POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Mounting Type	Number of Positions	Contact Type	Pitch	Pitch	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Material	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Termination	Termination Rows	Number of Rows	Features

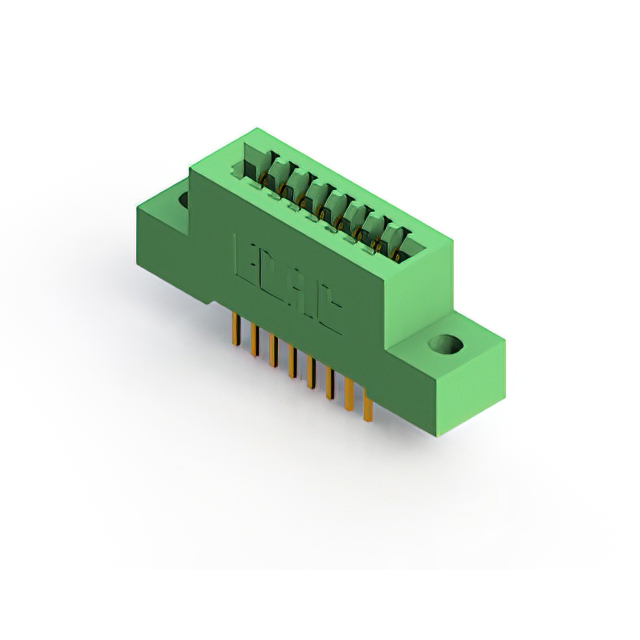

EDAC Inc. 842-016-540-202	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Non Specified - Dual Edge	125 °C	-40 C	Dual	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Wire Wrap

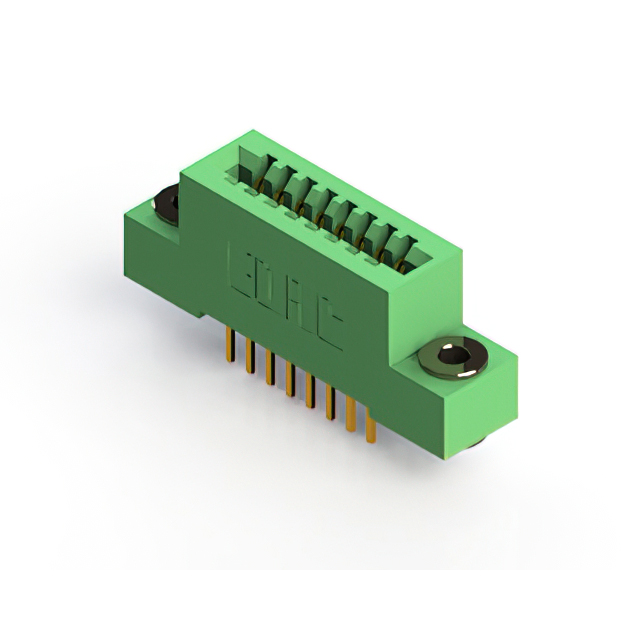

EDAC Inc. 842-016-523-203	Diallyl Phthalate (DAP)	2	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Non Specified - Dual Edge	125 °C	-40 C	Dual	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Solder
EDAC Inc. 842-016-520-101	Diallyl Phthalate (DAP)					Non Specified - Single Edge	125 °C	-40 C	Single	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Copper Alloy		0.25 Ám	10 Áin	Gold	Female	Solder	1	1

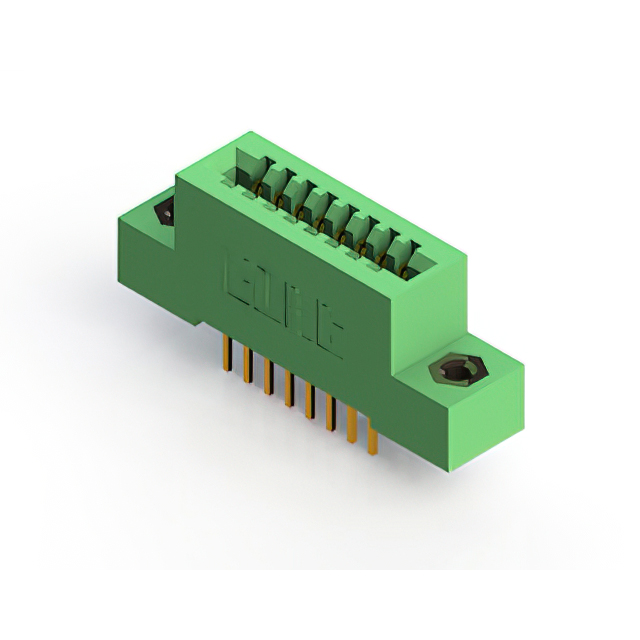

EDAC Inc. 842-016-523-208	Diallyl Phthalate (DAP)	2	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	125 °C	-40 C	Dual	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Solder

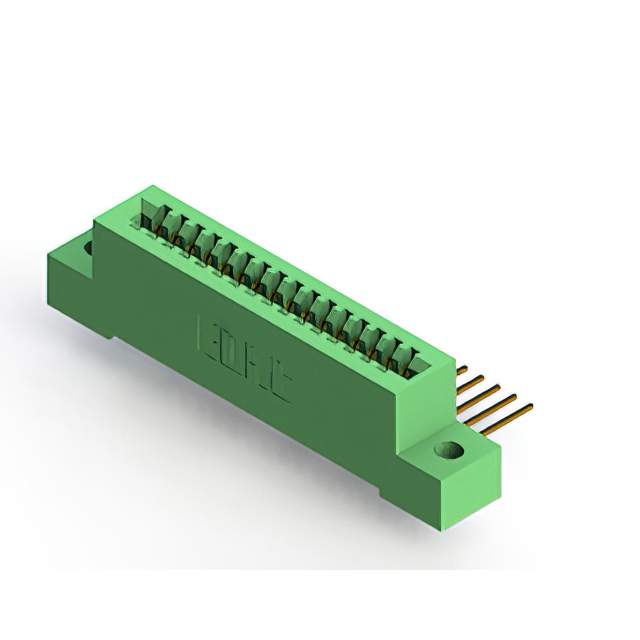

EDAC Inc. 842-016-559-102	Diallyl Phthalate (DAP)		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Non Specified - Single Edge	125 °C	-40 C	Single	Right Angle Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Copper Alloy		0.25 Ám	10 Áin	Gold	Female	Solder	1	1

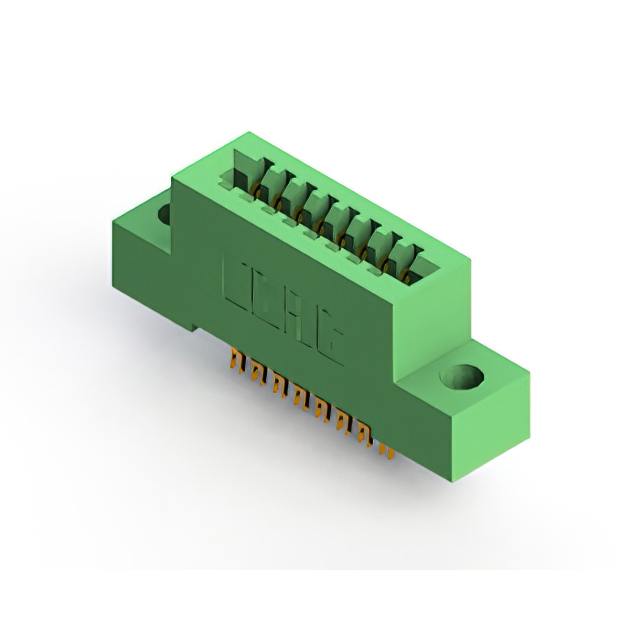

EDAC Inc. 842-016-555-204	Diallyl Phthalate (DAP)	2	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Non Specified - Dual Edge	125 °C	-40 C	Dual	Board Edge Straddle Mount	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Solder			Card Extender

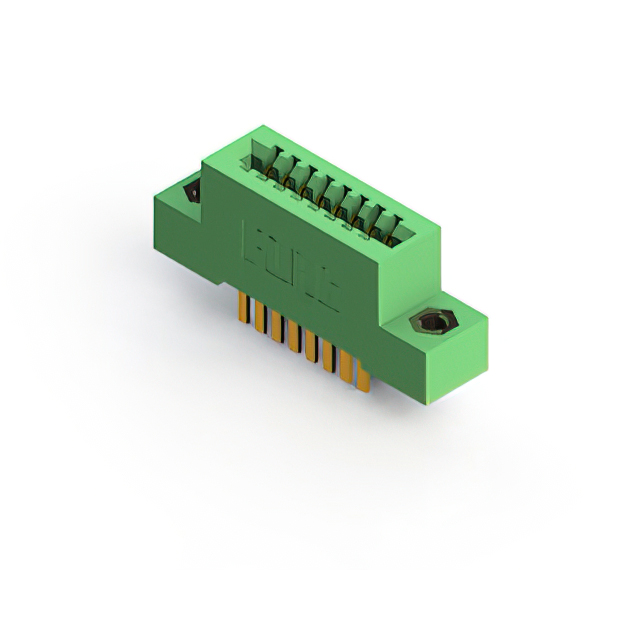

EDAC Inc. 842-016-544-207	Diallyl Phthalate (DAP)	2	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	125 °C	-40 C	Dual	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Wire Wrap

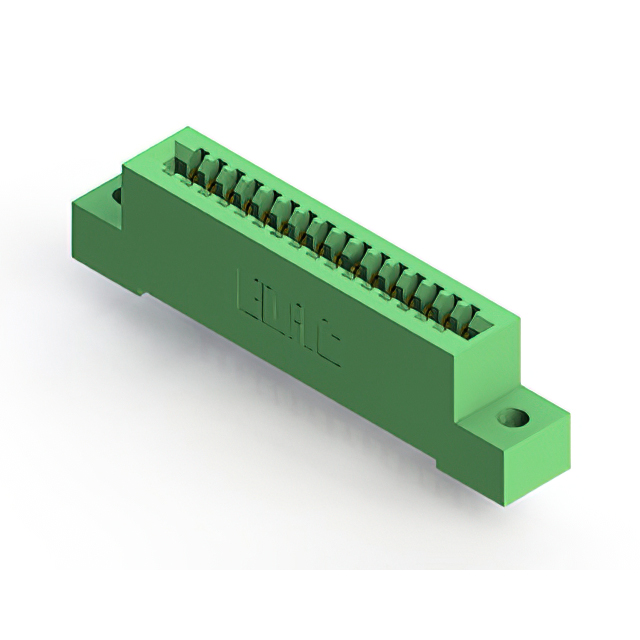

EDAC Inc. 842-016-524-102	Diallyl Phthalate (DAP)		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Non Specified - Single Edge	125 °C	-40 C	Single	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Copper Alloy		0.25 Ám	10 Áin	Gold	Female	Solder	1	1
EDAC Inc. 842-016-558-201	Diallyl Phthalate (DAP)	2				Non Specified - Dual Edge	125 °C	-40 C	Dual	Right Angle Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	8	Copper Alloy	2	0.25 Ám	10 Áin	Gold	Female	Solder

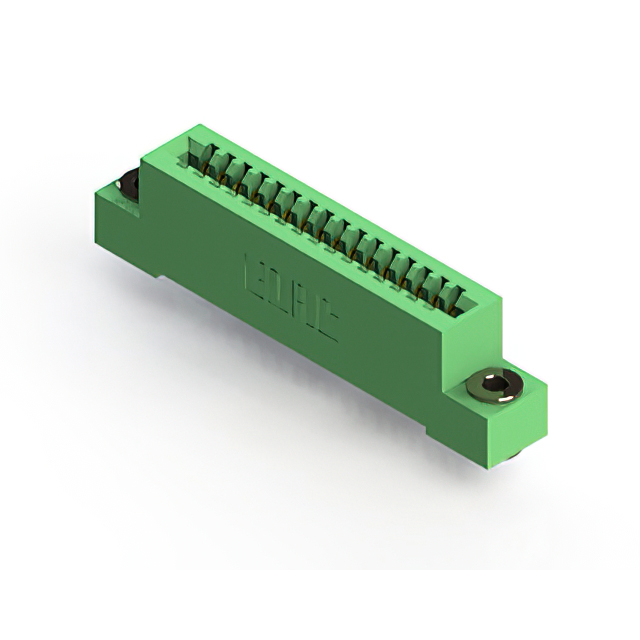

EDAC Inc. 842-016-523-103	Diallyl Phthalate (DAP)		Floating Bobbin Flush Mount	2.95 mm	0.116 "	Non Specified - Single Edge	125 °C	-40 C	Single	Through Hole	16	Cantilever	0.1 "	2.54 mm	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Copper Alloy		0.25 Ám	10 Áin	Gold	Female	Solder	1	1
