9312 Series
Manufacturer: Belden Inc.
Beta
⌘K

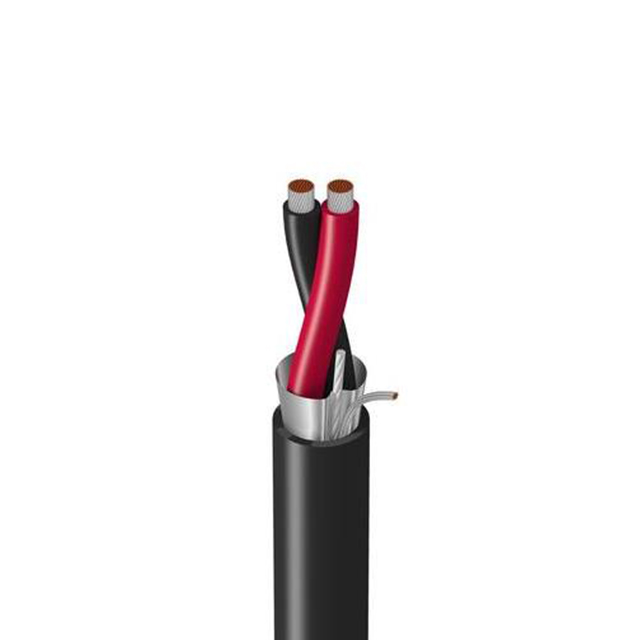

CABLE 2CON 12AWG CHROM SHLD
| Part | Shield Material | Shield Coverage | Length | Length | Conductor Insulation | Shield Type | Wire Gauge | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Usage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Foil | 12 AWG | Drain Wire Rip Cord | 0.373 in | 9.47 mm | 2 | 30 AWG | 65 | UL Style 2464 | Instrumentation | Multi-Conductor | 0.042 in | 1.067 mm | Chrome | Copper Tinned | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC |
