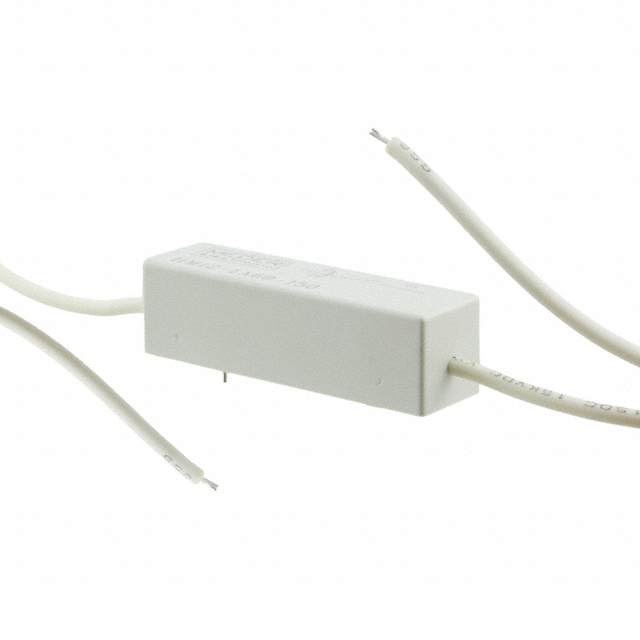

HM12 Series
Manufacturer: Standex-Meder Electronics
Catalog
RELAY REED SPST 3A 12V
| Part | Coil Resistance | Form A Count | Contact Form | Mounting Type | Coil Type | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Current | Operate Time | Termination Style | Must Operate Voltage | Release Time | Contact Rating (Current) | Operating Temperature (Max) | Operating Temperature (Min) | Coil Voltage | Must Release Voltage | Form B Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Standex-Meder Electronics | 150 Ohms | 1 | SPST-NO | Through Hole | Non Latching | 10000 VDC | 10000 VAC | 80 mA | 3 ms | PC Pin | 9 VDC | 1.5 ms | 3 A | 70 °C | -20 °C | 12 VAC | 1 VDC | |
 Standex-Meder Electronics | 250 Ohms | SPST-NC | Through Hole | Non Latching | 7500 VDC | 7500 VAC | 48 mA | 3 ms | PC Pin | 9 VDC | 1.5 ms | 3 A | 70 °C | -20 °C | 12 VAC | 1 VDC | 1 |
